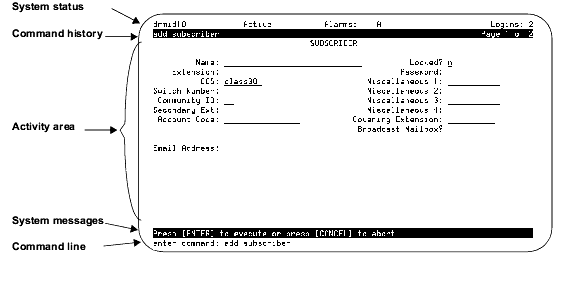

Table: Component Descriptions: AUDIX Command
Prompt Screen
|
Component
|
Description
|
|
System status
|
This line displays Avaya INTUITY system information.
Starting from the left, the system status line indicates:
- The Avaya INTUITY
machine name
- Voice mail status
(Active or Inactive)
- Any active alarms
M = Major
m = Minor
A = Administrative
w = Warning
- The number of people
currently logged in
|
|
Command history
|
This line displays the fully expanded command
typed in the command line, the current page number, and the page
count, for example, change subscriber Jane
Doe Page 1 of 2.
If the active screen is a help screen, this
line displays the title of the screen or field help, for example,
change subscriber Jane Doe: field help Page 1 of 1.
|
|
Activity area
|
This area displays:
- Data entry fields,
which are used to specify new or changed parameter values
- Display-only fields,
which contain current parameter values that cannot be changed
from this screen
- Report results, which
display requested system information
- Help for screens
and fields, which is activated with the F1 (Help) or F6 (Choices)
keys
|
|
System messages
|
This line displays system feedback, error
messages, and prompts, for example, Command Successfully
Completed
|
|
Command line
|
This line is where you type commands to gain
access to a new screen or exit AUDIX Administration.
|
|
Function key labels
|
This line shows labels for function keys F1
through F8. Press the appropriate function key to activate the
function.
|
