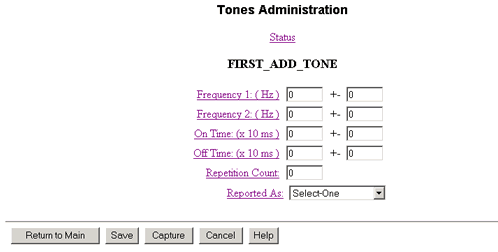

Example of Additional Tone Page—First Add Tone



Table: First Additional Tone Page— Field Descriptions�

Field	Description	Values
Frequency 1 and 2	This field refers to the set of frequencies that are used within each tone.	If a dial tone is 440 Hz + 480 Hz, you need to enter 440 under Frequency 1 and 480 under Frequency 2.
On Time	Specifies the duration of the On cycles in milliseconds.
Off Time	Specifies the duration of the Off cycles in milliseconds.
Repetition Count	These fields display the results of analysis of the number of occurrences of the on time/off time cycles.	integer
Report as:	This field is displayed on the additional tones page only. This field takes the value of the Basic Tone type of either Dial, Busy, Ring, or Reorder Tone, and reports the value to the system. If the additional tone is not used, this field takes the value of "unused."	Busy Dial Ringback Reorder Unused
