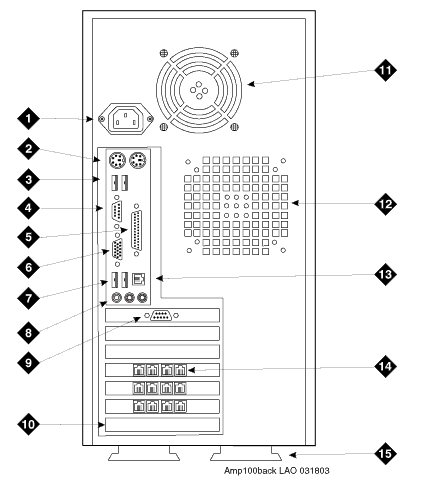

Back View of Platform
|
| 1 |
AC
power receptacle |
 |
| 2 |
Keyboard/mouse
connectors |
| 3 |
USB
ports |
| 4 |
Monitor
connector |
| 5 |
Parallel
port |
| 6 |
Serial
port |
| 7 |
USB
ports |
| 8 |
Speaker
and microphone |
| 9 |
COM2 |
| 10 |
Unused
Slot |
| 11 |
Fan |
| 12 |
Fan
exhaust |
| 13 |
LAN
connector |
| 14 |
RJ-11
jacks |
| 15 |
Stabilizing
feet |
