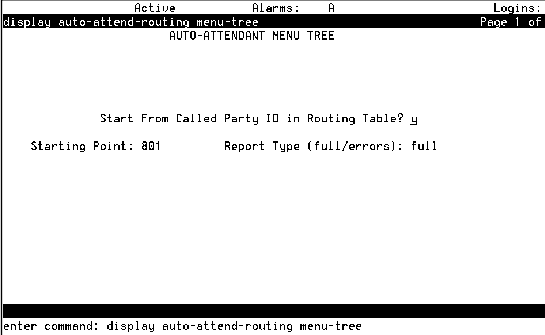

Auto-Attendant Menu Tree Screen

Auto-Attendant Menu Tree Screen

Table: Field Definitions: Auto-Attendant Menu Tree Screen

Field Name

Valid Input

Description/Procedure

Start From Called Party ID in Routing Table?

y = yes
n = no

Type y in this field to make the program start its search at the Incoming Called Number in the routing table. Using the example shown in the Auto-Attendant Routing Table Screen, if you specified trunk 802 in the next field, then mailboxes 9003, 9004, 9005, and the mailbox in holiday schedule hol1 would all be tested.

Type n in this field to make the program test the mailbox number specified under Starting Point first, and then test the mailboxes that are set out in the menu that applies to the specified mailbox.

Starting Point:

Blank

2- to 10- digits

The extension number of the mailbox or Incoming Called Number that is to be tested. Leave the field blank to test all attendant mailboxes (or all mailboxes in the routing table, if you typed y in the first field).

Report Type (full/errors):

f = full

e = errors

f = Display errors and each component element of each mailbox

e = Display only flawed mailboxes and errors

Table: Field Definitions: Auto-Attendant Menu Tree Screen
Field Name	Valid Input	Description/Procedure
Start From Called Party ID in Routing Table?	y = yes n = no	Type y in this field to make the program start its search at the `Incoming Called Number` in the routing table. Using the example shown in the Auto-Attendant Routing Table Screen, if you specified trunk 802 in the next field, then mailboxes 9003, 9004, 9005, and the mailbox in holiday schedule hol1 would all be tested. Type n in this field to make the program test the mailbox number specified under `Starting Point` first, and then test the mailboxes that are set out in the menu that applies to the specified mailbox.
Starting Point:	Blank 2- to 10- digits	The extension number of the mailbox or Incoming Called Number that is to be tested. Leave the field blank to test all attendant mailboxes (or all mailboxes in the routing table, if you typed y in the first field).
Report Type (full/errors):	f = full e = errors	f = Display errors and each component element of each mailbox e = Display only flawed mailboxes and errors
