Machine Profile Screen for the Local Machine

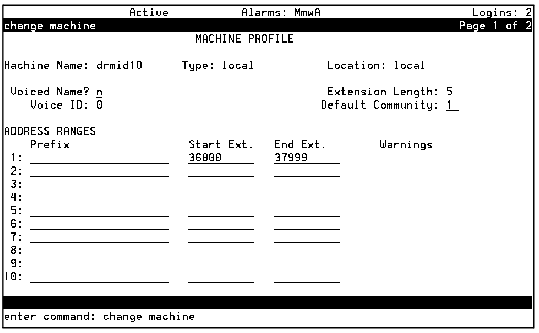

Machine Profile Screen for the Local Machine — Page 1

Table: Field Definitions; Local Machine Profile Screen — Page 1

Field

Valid Input

Procedure/Description

Machine Name

Display only

Displays the Machine Name for the local machine that you entered in the Local Machine Administration window (see Changing Local Machine Information).

Machine Type

Display only

Displays local.

Location

Display only

Displays local.

Voiced Name?

y = yes
n = no

The Voice Name field contains an n until you record a name for the machine. This field automatically changes to y when you record a name for the machine.

Extension Length

an integer, 3 through 10

Enter the length of extensions on the local system. The value you enter must match the extension length in your dial plan.

Voice ID

Display only

Displays a system-assigned identifier that you must use to identify the machine if you decide to record machine names.

Default Community

an integer, 1 through 15

If you have administered your system to use community sending restrictions, enter the default community number for your subscriber population.

Prefix

0 to 21 alphanumeric characters

Prefixes can be used on the local machine, but they limit the functionality and are not recommended. For a detailed discussion of the use and implications of prefixes, see Fax Administration.

Start Ext.

a 3-digit to 10-digit string

Enter the starting extensions for the ranges of telephone numbers used on the local system. (Designate a block of switch extensions that can be used at the local system when assigning subscribers.)

For example, if your system uses extensions between 2000 and 3000, enter 2000 in the Start Ext. field.

Up to 10 different ranges can be specified to pinpoint the exact set of extension blocks used by the local system. The length of the start and end extension must agree with the Extension Length field. For a 5-digit extension, the default is 00000 to 99999.

End Ext.

a 3-digit to 10-digit string

Enter the ending extensions for the ranges of telephone numbers used on the local system.

For example, if your system uses extensions between 2000 and 3000, enter 3000 in the End Ext. field.

Warnings

Display only

This field displays a warning when a duplication or overlap of an extension range for another machine is being assigned.

Table: Field Definitions; Local Machine Profile Screen — Page 1
Field	Valid Input	Procedure/Description
Machine Name	Display only	Displays the Machine Name for the local machine that you entered in the Local Machine Administration window (see Changing Local Machine Information).
Machine Type	Display only	Displays `local`.
Location	Display only	Displays `local`.
Voiced Name?	y = yes n = no	The Voice Name field contains an `n` until you record a name for the machine. This field automatically changes to `y` when you record a name for the machine.
Extension Length	an integer, 3 through 10	Enter the length of extensions on the local system. The value you enter must match the extension length in your dial plan.
Voice ID	Display only	Displays a system-assigned identifier that you must use to identify the machine if you decide to record machine names.
Default Community	an integer, 1 through 15	If you have administered your system to use community sending restrictions, enter the default community number for your subscriber population.
Prefix	0 to 21 alphanumeric characters	Prefixes can be used on the local machine, but they limit the functionality and are not recommended. For a detailed discussion of the use and implications of prefixes, see Fax Administration.
Start Ext.	a 3-digit to 10-digit string	Enter the starting extensions for the ranges of telephone numbers used on the local system. (Designate a block of switch extensions that can be used at the local system when assigning subscribers.) For example, if your system uses extensions between 2000 and 3000, enter 2000 in the `Start Ext.` field. Up to 10 different ranges can be specified to pinpoint the exact set of extension blocks used by the local system. The length of the start and end extension must agree with the `Extension Length` field. For a 5-digit extension, the default is 00000 to 99999.
End Ext.	a 3-digit to 10-digit string	Enter the ending extensions for the ranges of telephone numbers used on the local system. For example, if your system uses extensions between 2000 and 3000, enter 3000 in the `End Ext.` field.
Warnings	Display only	This field displays a warning when a duplication or overlap of an extension range for another machine is being assigned.
