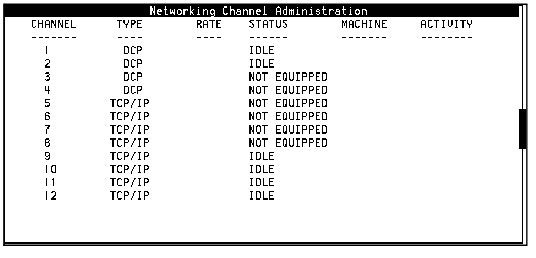

Table: Networking Channel Administration Window Description
| Field |
Description |
| Channel |
This field shows the number of the channel on the ACCX card or LAN card. |
| Type |
This field shows whether the channel is DCP, RS-232 synchronous, RS-232 asynchronous, or TCP/IP. |
| Rate |
This field provides the speed at which the channel communicates when in use (9600, 19200, 56000, or 64000 bps). TCP/IP channels show a rate of 0 when in use. |
| Status |
This field provides an explanation of the current state of the channel. Status values are:
-
not equipped — the channel has not been administered
-
equipped — the channel has been administered, but the system has not been rebooted
-
idle — the channel is ready to accept or make a call
-
in use — a call is in progress
-
busy out — maintenance has busied out the channel
-
down — the channel is not working
-
transition — a call is in the process of going through
|
| Machine |
This field shows the name of the remote machine to which this local machine is connected when in use. |
| Activity |
This field shows the activity taking place on the channel and the remote machine name. Activities are:
- voice mail in
- voice mail out
- update in
- update out
- admin in
- admin out
- status in
- status out
|
