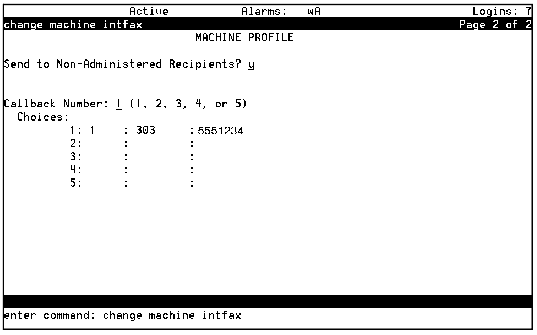

Machine Profile Screen, Page 2

Machine Profile Screen, Page 2

Table: Field Definitions: Machine Profile Screen, Page 2

Field Name

Valid Input

Description/Procedure

Send to Non- Administered Recipients?

y = yes
n = no

Enter y. This field should always be yes for fax call delivery machines.

This way, a subscriber is allowed to send to any number in the specified range. (If n is entered in this field, specific fax telephone numbers must be set up as administered remote subscribers.)

Callback Number:

1, 2, 3, 4, or 5

Callback numbers are not used for FAX Messaging. However, this field is linked to fields in other screens and must have a number entered (usually the number 1).

See Before You Begin for more information.

Table: Field Definitions: Machine Profile Screen, Page 2
Field Name	Valid Input	Description/Procedure
Send to Non- Administered Recipients?	y = yes n = no	Enter y. This field should always be yes for fax call delivery machines. This way, a subscriber is allowed to send to any number in the specified range. (If n is entered in this field, specific fax telephone numbers must be set up as administered remote subscribers.)
Callback Number:	1, 2, 3, 4, or 5	Callback numbers are not used for FAX Messaging. However, this field is linked to fields in other screens and must have a number entered (usually the number 1). See Before You Begin for more information.
