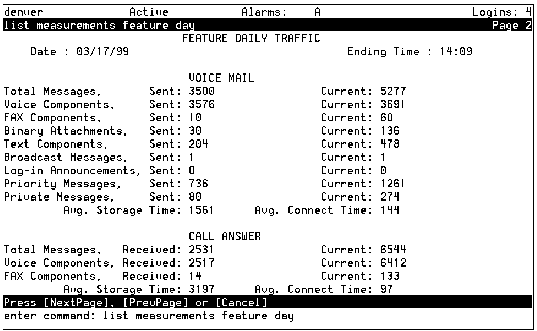

Table: Field Definitions: Feature Daily Traffic Screen, Page 2
| Field Name |
Description/Procedure |
| Date: |
The starting date for which traffic data was collected for the report. It is the date you entered on the command line, or the current date if you did not specify a date. If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record. |
| Ending Time: |
The time at which data collecting ended. |
| VOICE MAIL |
| Total Messages, Sent: |
The total number of messages that were sent on the local AUDIX system during the reporting period.
Note:
The Message Sent count includes all messages that were created on the local machine, including header-only messages, messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. A message sent to a mailing list or enhanced list counts as one message created for each recipient.
|
| Total Messages, Current: |
The total number of messages presently residing on the local AUDIX system.
Note:
The traffic unavailable display is normal.
|
| Voice Components, Sent:
Voice Components, Current: |
The total number of voice components that were sent on the local AUDIX system during the reporting period. The Voice Components Sent count is the total number of voice components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. The total number of voice components presently residing on the local AUDIX system. |
| FAX Components, Sent:
FAX Components, Current: |
The total number of fax components that were sent on the local AUDIX system during the reporting period. The FAX Components Sent count is the total number of fax components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. The total number of fax components presently residing on the local AUDIX system. |
| Binary Attachments, Sent:
Binary Attachments, Current: |
The total number of binary attachments that were sent on the local AUDIX system during the reporting period. The Binary Attachments Sent count is the total number of binary attachments included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. The total number of binary attachments presently residing on the local AUDIX system. |
| Text Components, Sent:
Text Components, Current: |
The total number of text components that were sent on the local AUDIX system during the reporting period. The Text Components Sent count is the total number of text components included in all messages that were created on the local machine, including messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. The total number of text components presently residing on the local AUDIX system. |
| Broadcast Messages, Sent: |
The number of broadcast messages (as defined by the broadcast messages feature) that were sent on the local AUDIX system during the reporting period. |
| Broadcast Messages, Current: |
The number of messages presently residing in the broadcast mailbox on the local AUDIX system that are marked as broadcast messages. |
| Log-in Announcement, Sent: |
The number of messages sent on the local AUDIX system during the reporting period that were login announcements (as defined by the login announcement feature). |
| Log-in Announcements, Current: |
The number of messages presently residing in the broadcast mailbox on the local AUDIX system that are marked as login announcements. Since only one login announcement can exist at any one time in the broadcast mailbox, this number is always 0 or 1. |
| Priority Messages, Sent: |
The number of messages sent on the local AUDIX system during the reporting period that were marked for priority delivery. The Priority Messages Sent count includes all priority messages that were created on the local machine, including header-only messages, messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. A message sent to a mailing list or enhanced list counts as one message created for each recipient. |
| Priority Messages, Current: |
The number of messages presently residing on the local AUDIX system that are marked as priority messages. |
| Private Messages, Sent: |
The number of messages sent on the local AUDIX system during the reporting period that were marked for private delivery. The Private Message Sent count includes all private messages that were created on the local machine, including header-only messages, messages to remote subscribers, unaddressed messages, undeliverable messages, and remote incoming messages. A message sent to a mailing list or enhanced list counts as one message created for each recipient. |
| Private Messages, Current: |
The number of messages presently residing on the local AUDIX system that are marked for private delivery. |
| Avg. Storage Time: |
The average duration (in minutes) for the hour being reported that messages remained in mailboxes before they were deleted. |
| Avg. Connect Time: |
The average duration (in seconds) of calls made directly to a mailbox that occurred during the reporting period. |
| CALL ANSWER |
| Total Messages, Received: |
The number of call answer messages recorded or received by the local machine during the reporting period. |
| Total Messages, Current: |
The number of call answer messages presently stored in the local AUDIX system. |
| Voice Components, Received: Voice Components, Current: |
The number of call answer voice components recorded on the local machine during the reporting period. The number of call answer voice components presently stored in the local AUDIX system. |
| FAX Components, Received: FAX Components, Current: |
The number of call answer fax components received by the local machine during the reporting period. The number of call answer fax components presently stored in the local AUDIX system. |
| Avg. Storage Time: |
The average duration (in minutes) during the day being reported that call answer messages were stored in mailboxes before they were deleted. |
| Avg. Connect Time: |
The average duration (in seconds) of call answer calls that were made during the reporting period. |
