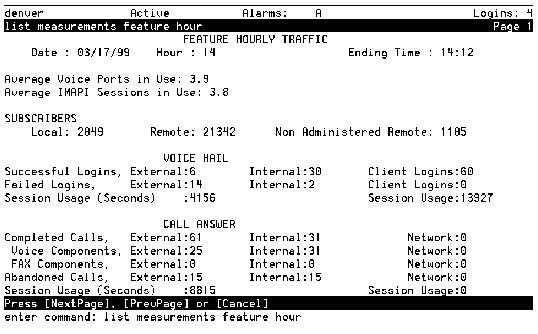

Table: Field Definitions: Feature Hourly Traffic Screen, Page 1
| Field Name |
Description/Procedure |
| Date: |
The starting date for which traffic data was collected for the report. It is the date you entered on the command line, or the current date if you did not specify a date. If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record. |
| Hour: |
The starting hour for which traffic data was collected for the report. It is the hour you entered on the command line, or the current hour if you did not specify an hour. |
| Ending Time: |
The time at which data collecting ended. |
| Average Ports in Use: |
The average number of ports that were in use simultaneously during the hour of the day you selected. On small systems, if this number is greater than half the total number of ports configured, the AUDIX system is probably experiencing call blocking. |
| Average IMAPI Sessions in Use: |
The average number of IMAPI sessions that were in use simultaneously during the hour of the day you selected. On small systems, if this number is greater than half the total number of ports configured, the AUDIX system is probably experiencing call blocking. |
| SUBSCRIBERS |
| Local: |
The total number of local subscribers administered on the AUDIX system at the end of the hour being reported. |
| Remote: |
The total number of remote subscribers administered on the AUDIX system at the end of the hour being reported. |
| Non Administered Remote: |
The total number of subscribers external to the AUDIX system (not administered) who sent mail to an administered AUDIX subscriber or to whom mail was sent by an administered AUDIX subscriber the end of the hour being reported. |
| VOICE MAIL |
| Successful Logins, External: Successful Logins, Internal: Successful Logins, Client Logins: |
The number of successful login attempts made during the hour reported. Login attempts were made by subscribers calling from:
- Telephones not administered (external) on the host switch
- Telephones administered (internal) on the host switch
- IMAPI interface (client logins)
|
| Failed Logins, External: Failed Logins, Internal: Failed Logins, Client Logins: |
The number of unsuccessful login attempts made during the hour reported. Login attempts were made by subscribers calling from:
- Telephones not administered (external) on the host switch
- Telephones administered (internal) on the host switch
- IMAPI interface (client logins)
Unsuccessful means that the AUDIX system did not allow the caller access to AUDIX operations. This may have been due to an unrecognizable password, login ID, or both, or because the caller hung up before completing the call. |
| Session Usage (seconds): |
The total number of seconds (across all ports) that the system was used for messaging sessions (including voice messages, fax messages, email messages, call message retrieval, change of passwords, and changes of personal greetings) during the hour being reported. |
| Session Usage: |
The total number of seconds that IMAPI Sessions were in use for voice mail sessions during the hour reported. |
| CALL ANSWER |
| Completed Calls, External: Completed Calls, Internal: Completed Calls, Network: |
The number of completed call answer telephone calls made to the AUDIX system during the hour reported. Calls came from:
- Telephones not administered (external) on the host switch
- Telephones administered (internal) on the host switch
- Telephones networked with IMAPI sessions to the host switch
These numbers include the times the AUDIX system answered calls for subscribers, attendants, and bulletin boards. |
| Voice Components, External: Voice Components, Internal: Voice Components, Network: |
The number of voice components that were included in call answer telephone calls made to the AUDIX system during the hour reported. Calls came from:
- Telephones not administered (external) on the host switch
- Telephones administered (internal) on the host switch
- Telephones networked with IMAPI sessions to the host switch
These numbers include the times the AUDIX system answered calls for subscribers, attendants, and bulletin boards. |
| FAX Components, External: FAX Components, Internal: FAX Components, Network: |
The number of fax components that were included in call answer telephone calls made to the AUDIX system during the hour reported. Calls came from:
- Telephones not administered (external) on the host switch
- Telephones administered (internal) on the host switch
- Telephones networked with IMAPI sessions to the host switch
These numbers include the times the AUDIX system answered calls for subscribers, attendants, and bulletin boards. |
| Abandoned Calls, External: Abandoned Calls, Internal: Abandoned Calls, Network: |
The number of times a caller hung up after the mailbox greeting started to play, but before the beep to leave a message occurred. Calls came from:
- Telephones not administered (external) on the host switch
- Telephones administered (internal) on the host switch
- Telephones networked with IMAPI sessions to the host switch
These numbers include the times the AUDIX system answered calls for subscribers, attendants, and bulletin boards. |
| Session Usage (seconds): |
The total number of seconds (across all ports) that the system was used for call answer sessions during the hour being reported. |
| Session Usage: |
The total number of seconds that IMAPI sessions were used for call answer sessions during the hour being reported. |
