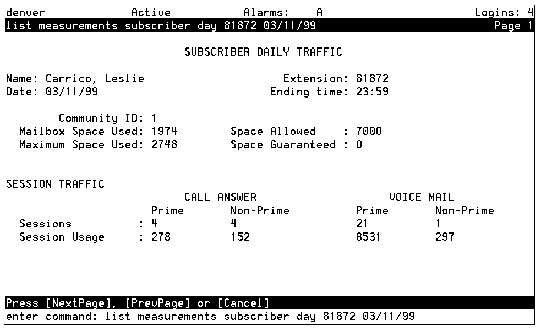

Subscriber Daily Traffic Screen, Page 1

Subscriber Daily Traffic Screen, Page 1

Table: Field Definitions: Subscriber Daily Traffic Screen, Page 1

Field Name

Description/Procedure

Name:

The name of the subscriber whose traffic information is being reported. It is the name you entered on the command line, or the name corresponding to the subscriber's extension, if you entered the extension.

Extension:

The extension of the subscriber whose traffic information is being reported. This is the extension you entered on the command line, or the extension corresponding to the subscriber's name, if you entered the name.

Date:

The starting date for which traffic data was collected for the report. It is the date you entered on the command line, or the current date if you did not specify a date.

If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record.

Ending Time:

The time at which data collecting ended.

Community ID:

The number of the community to which the subscriber belongs.

Mailbox Space Used:

The amount of message space (in seconds) in use by the subscriber at the end of the period being reported.

Space Allowed:

The maximum mailbox size (in seconds) administered for this subscriber during the reporting period.

Maximum Space Used:

The maximum amount of message space (in seconds) in use at any given time during the reporting period.

Space Guaranteed:

The minimum message space (in seconds), if any, guaranteed for the subscriber's mailbox during the reporting period.

CALL ANSWER

Sessions, Prime

Sessions, Non-Prime

The number of times callers were redirected to the AUDIX system to leave a call answer message during prime and nonprime hours during the reporting period.

VOICE MAIL

Sessions, Prime

Sessions, Non-Prime

The number of times the subscriber successfully logged in to AUDIX during prime and nonprime hours during the reporting period.

CALL ANSWER

Session Usage, Prime

Session Usage, Non-Prime

The total duration (in seconds) of calls to the subscriber during prime and nonprime hours during the reporting period.

VOICE MAIL

Session Usage, Prime

Session Usage, Non-Prime

The total duration (in seconds) of time the subscriber was logged in to AUDIX during prime and nonprime hours during the reporting period.

Table: Field Definitions: Subscriber Daily Traffic Screen, Page 1
Field Name	Description/Procedure
Name:	The name of the subscriber whose traffic information is being reported. It is the name you entered on the command line, or the name corresponding to the subscriber's extension, if you entered the extension.
Extension:	The extension of the subscriber whose traffic information is being reported. This is the extension you entered on the command line, or the extension corresponding to the subscriber's name, if you entered the name.
Date:	The starting date for which traffic data was collected for the report. It is the date you entered on the command line, or the current date if you did not specify a date. If you enter a date previous to the current date, each day's record is presented as an additional page (screen). Press F7 (NextPage) and F8 (PrevPage) to scroll through each daily report record.
Ending Time:	The time at which data collecting ended.
Community ID:	The number of the community to which the subscriber belongs.
Mailbox Space Used:	The amount of message space (in seconds) in use by the subscriber at the end of the period being reported.
Space Allowed:	The maximum mailbox size (in seconds) administered for this subscriber during the reporting period.
Maximum Space Used:	The maximum amount of message space (in seconds) in use at any given time during the reporting period.
Space Guaranteed:	The minimum message space (in seconds), if any, guaranteed for the subscriber's mailbox during the reporting period.
CALL ANSWER Sessions, Prime Sessions, Non-Prime	The number of times callers were redirected to the AUDIX system to leave a call answer message during prime and nonprime hours during the reporting period.
VOICE MAIL Sessions, Prime Sessions, Non-Prime	The number of times the subscriber successfully logged in to AUDIX during prime and nonprime hours during the reporting period.
CALL ANSWER Session Usage, Prime Session Usage, Non-Prime	The total duration (in seconds) of calls to the subscriber during prime and nonprime hours during the reporting period.
VOICE MAIL Session Usage, Prime Session Usage, Non-Prime	The total duration (in seconds) of time the subscriber was logged in to AUDIX during prime and nonprime hours during the reporting period.
