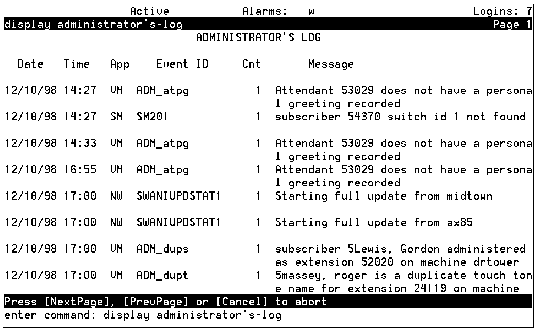

Administrator's Log Screen; Report Results

Administrator's Log Screen; Report Results

Table: Field Definitions: Administrator's Log Screen; Report Results

Field Name

Description/Procedure

Date

The dates the alarms were logged.

Time

The times on the given dates the administration alarm were logged.

App

The twocharacter application code for the administrator's log entry:

VM = Messaging (voice mail, fax mail, and email messages)

VP = Voice platform

NW = Digital networking only

SW = Switch-interface

MT = Maintenance

MB = Remote maintenance circuit card

Event ID:

The code for the administration event type. See Alarms and Events for a list of event types.

Cnt

The number of times the associated message was sent to the administrator's log within 1 minute.

Message

A textual description of the administration event. Two lines are used for each event.

Table: Field Definitions: Administrator's Log Screen; Report Results
Field Name	Description/Procedure
Date	The dates the alarms were logged.
Time	The times on the given dates the administration alarm were logged.
App	The twocharacter application code for the administrator's log entry: VM = Messaging (voice mail, fax mail, and email messages) VP = Voice platform NW = Digital networking only SW = Switch-interface MT = Maintenance MB = Remote maintenance circuit card
Event ID:	The code for the administration event type. See Alarms and Events for a list of event types.
Cnt	The number of times the associated message was sent to the administrator's log within 1 minute.
Message	A textual description of the administration event. Two lines are used for each event.
