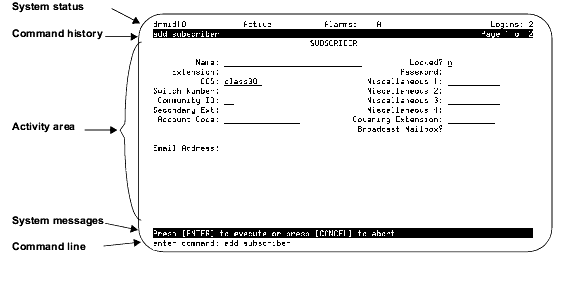

Table: Component Descriptions: AUDIX Command Prompt Screen
| Component |
Description |
| System status |
This line displays Avaya Intuity system information. Starting from the left, the system status line indicates:
- The Avaya Intuity machine name
- Voice mail status (Active or Inactive)
- Any active alarms
M = Major
m = Minor
A = Administrative
w = Warning
- The number of people currently logged in
|
| Command history |
This line displays the fully expanded command typed in the command line, the current page number, and the page count, for example, change subscriber Jane Doe Page 1 of 2. If the active screen is a help screen, this line displays the title of the screen or field help, for example, change subscriber Jane Doe: field help Page 1 of 1. |
| Activity area |
This area displays:
- Data entry fields, which are used to specify new or changed parameter values
- Display-only fields, which contain current parameter values that cannot be changed from this screen
- Report results, which display requested system information
- Help for screens and fields, which is activated with the F1 (Help) or F6 (Choices) keys
|
| System messages |
This line displays system feedback, error messages, and prompts, for example, Command Successfully Completed |
| Command line |
This line is where you type commands to gain access to a new screen or exit AUDIX Administration. |
| Function key labels |
This line shows labels for function keys F1 through F8. Press the appropriate function key to activate the function. |
