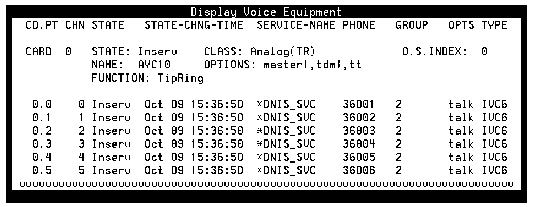

Table: Field Definitions: Display Voice Equipment Window
| Field Name |
Description/Procedure |
| CD.PT
|
Identifies which voice card the channel resides on (0 through 11) and its position on that card (0 through 5). For example, a CD.PT of 1.1 signifies that this is the second voice card, second channel. |
| CHN
|
The channel number. Channels are numbered sequentially beginning with the first voice card (0 through 63). |
| STATE
|
The current status of the channel, as follows:
- In-service (INSERV) - the normal state
- Facility-out-of-service (FOOS)
- Manually-out-of-service (MANOOS)
- Hardware-out-of-service (HWOOS)
- broken - diagnostics did not pass on the card and it may have to be replaced
|
| STATE-CHNG- TIME
|
The time and date of the last change in state of the channel. |
| SERVICE-NAME
|
The associated service name or a DNIS designation indication. |
| PHONE
|
The channels' corresponding switch extensions. |
| GROUP
|
Not applicable to the Avaya Intuity products. |
| OPTS
|
The equipment options (talk or TDM.) |
| TYPE
|
The type of voice card being used. This column always reads IVC6. |
