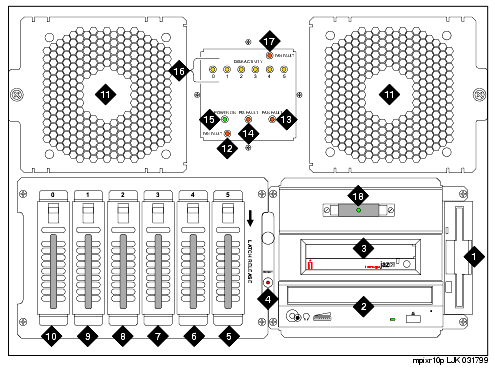

Figure: Front View of a Rack-Mounted MAP/100P with Front Bezel Removed

See the table below for a description of each component.



Component
Description
Component
Description
1.
Diskette drive
3.5-inch, 1.44-MB high-density; system configuration; diagnostic testing
10.
Empty hard disk drive carriage
2.
CD-ROM drive
Random access to the operating system, application software, and speech data
11.
Circuit card cage fan assembly
Cooling system component
3.
Disk cartridge drive
Backup and restore; loading the system
12.
Fan fault LED
LED; lights red when the left fan fails
4.
Reset switch
Push button; resets the MAP/100P
13.
Card cage fan fault LED
LED; lights red when the card cage fan fails
5.
Hard disk drive 0
4.5-GB SCSI
14.
Power supply fault LED
LED; lights red when the power supply fan fails or the power supply is removed
6.
Hard disk drive 1
4.5-GB SCSI
15.
Power-on LED
LED; lights green when the power is on
7.
Hard disk drive 2
4.5-GB SCSI
16.
Disk activity indicators
(per SCSI ID)
LED; intermittently lights amber when the associated disk is accessed and active
8.
Hard disk drive 3
4.5-GB SCSI
17.
Fan fault LED
LED; lights red when the right fan fails
9.
Hard disk drive 4
4.5-GB SCSI
18.
SCSI external active terminator
External active terminator connected on the end of the CPU SCSI bus cable with an LED indicator for power available
