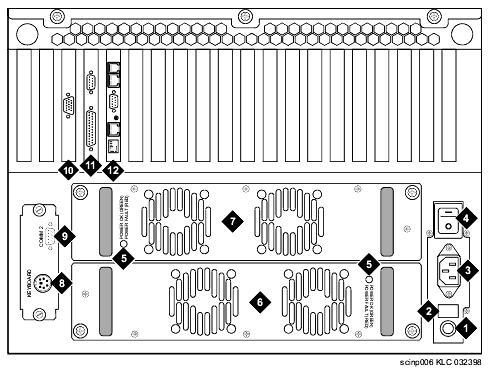

Figure: Back View of the Rack-Mounted MAP/100P

See the table below for a description of each component.



Component
Description
Fuse, line
AC line. 250V, 12 amp for U.S.
250V, 6.3 amp for international
Fuse rating label
Denotes caution and fuse rating/type reference.
AC power inlet receptacle
3prong, 110V or 220V
Connects the MAP/100P to the power source through a power cord.
ON/OFF power switch
Rocker switch
Turns power on or off to the MAP/100P.
Power supply LED
LED, power supply status
Lights green when OK; lights red when faulty.
Power supply 1
110/220V autosensing, always required
Provides +5, -5, +12, and -12 volts requirements.
Power supply 2
110/220V autosensing, always required
Provides +5, -5, +12, and -12 volts requirements.
Keyboard connector
5pin female circular DIN to the MAP/100P
COM2
Asynchronous port
9pin male D subminiature
Communicates with external devices.
Video circuit card
The connector on the circuit card provides the interface between a monitor and the MAP/100P through a cable.
CPU (slot 17)
P5 200 MHz CPU with COM1 and parallel port connectors
Remote maintenance circuit card (ISA slot 16)
Provides access for remote maintenance.
