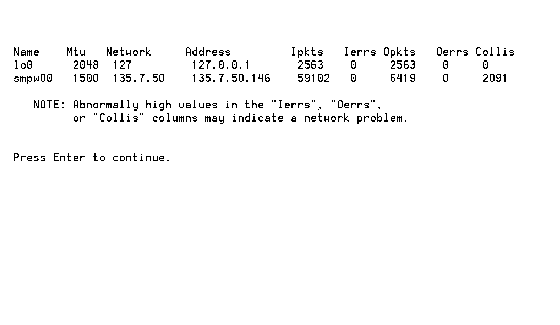

Table:
| Field |
Description |
| Name
|
The name of the interface. The LAN card is "sme00." An asterisk (*) in the field indicates that the interface is not enabled. |
| Mtu
|
The maximum transmission unit in bytes. This field indicates the longest packet that can be transmitted without needing to be split. |
| Network
|
The network to which the interface provides access. For the LAN card (sme00), the value for this field is always "none." |
| Address
|
The IP address assigned to this interface. For the LAN card (sme00), the value for this field is always "none." |
| Ipkts
|
The number of packets received over the network since the Avaya Intuity system was turned on. |
| Ierrs
|
The number of damaged packets received. A value for this field greater than 10% of the packets received (Ipkts) indicates that the network is too busy and performance is slow. |
| Opkts
|
The number of packets sent over the network since the Avaya Intuity system was turned on. |
| Oerrs
|
The number of packets damaged while being sent. A value for this field greater than 10% of the packets sent (Opkts) indicates that the network is too busy and performance is slow. |
| Collis
|
The number of collisions occurring on the network. A collision occurs when two machines on the network attempt to transmit a packet at the same time. Packets will be sent again; however, too many collisions can slow down the network. A value for this field greater than 10% of the packets sent (Opkts) indicates that the network is too busy and performance is slow. |
