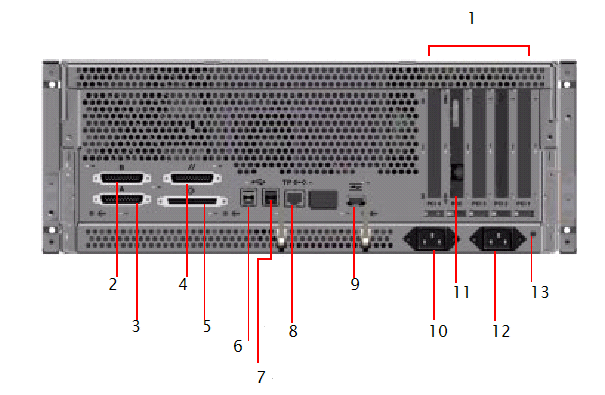

Item

Connection type

Avaya IR system use

1

PCI card slots

The platform includes one 33-MHz or 66 MHz 32/64-bit PCI slot (PCI-1) that is used for an additional Ethernet card. It also includes three 33-MHz, 32/64-bit peripheral component interconnect (PCI) slots (PCI-2. -3, and -4). Only two of these PCI slots can be used for telephony cards. The long PCI connectors accept both long and short PCI cards. PCI-4 is not used.

2

Serial connector a

The first serial port on the Sun Fire 280R platform is used to connect to the video monitor, if one is used.

3

Serial connector b

The second serial port is used to connect to an external modem and to the Access Security Gateway (ASG), which is used to control dial-up access to the Avaya IR system. Configuring the serial port for bi-directional communication allows remote users, such as Avaya support staff, to establish a connection to the system for remote administration and troubleshooting.

4

Parallel connector

May be connected directly to a printer, if desired.

5

UltraSCSI connector

Not used on the Avaya IR platform.

6, 7

USB connectors (four)

Two of these connectors are reserved for the keyboard and mouse that are part of the country kit. A keyboard and mouse are not required.

8

Twisted-pair Ethernet connector

The Ethernet network interface card (NIC) and the adjunct network switch are used to connect the Avaya IR system to the LAN and through the LAN to devices, including:

• Telephone switch
• Speech recognition servers
• Proxy Text-to-Speech (PTTS) servers
• Remote databases
• Network backup devices
• Avaya Interaction Center
• Predictive Dialing System

9

FC-AL

Not used on the Avaya IR platform.

10

Power connector for second power supply

Provides power to the second power supply.

11

RSC card

Remote system control card

12

Default power connector

Provides power and should be connected to an Uninterruptible Power Source (UPS).

13

System ground screw hole
