MAS - OAN Gateway Properties - Schedules Tab

This topic describes the controls in the Schedules tab of the Octel Analog Networking Gateway Properties dialog box. See MAS - Octel Analog Networking Gateway Properties Dialog Box.

Note: For more information, see MAS - Procedure for Administering Octel Analog Networking.

In the Schedules tab, you can set up message dispatch schedules. These determine what time of day messages are sent from the MAS to mailboxes on the remote Octel Analog Networking (OAN) node.

You can set up multiple schedules for sending messages from different locations at different times of the day. For example, your organization may want to dispatch some messages, such as those with low importance, at times when call charges are lowest.

Note: Once you have set up your message dispatch schedules, you must configure the Delivery Rules tab. Delivery rules allow you to assign schedules to messages of different importance. See MAS - OAN Gateway Properties - Delivery Rules Tab.

Opening the OAN Schedules tab

On your Windows desktop, click the Start > Programs > Microsoft Exchange > System Manager menu to launch Exchange System Manager.

In the console tree, select the container that includes the mail-enabled user object that you want to administer.

In the console tree, locate and click Connectors.

Under Connectors, right-click the Octel Analog Networking gateway object that you want to administer, and click Properties.

The system displays the Octel Analog Networking Gateway Properties dialog box for the selected OAN gateway object, with the Local Node tab selected.

Select the Schedules tab.

To configure OAN Schedules, complete the following fields:

Schedule Name

Adds a line to the list. You must then enter the name of the schedule and select the appropriate cells in the Schedule Grid.

Deletes the schedule selected in the list. The system prompts you to confirm the deletion. You cannot delete the Default schedule.

Schedule Grid

The grid has weekdays along the y-axis and the time of day along the x-axis. Cells on the grid represent a time interval, depending on the currently selected View Detail, either 1 hour (default) or 15 minutes.

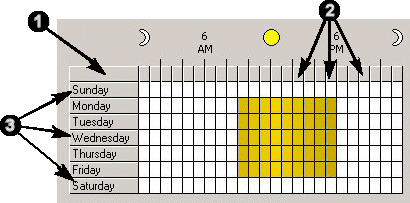

You can click on the cells in the grid to set the times (see the figure below).

1 Select all cells in the grid

2 Column headers

3 Row headers

To configure the schedule grid:

Clicking a cell toggles its state:

The Off state is shown in white.

The On state is shown in blue, if your system has a low number of colors available, or a variant of gold, if your system has enough colors.

To toggle all the cells in a row to the same state, click inside a row header.

To toggle all the cells in a column to the same state, click inside a column header.

To change all cells to the same state as the top left cell, click inside the top left cell

To toggle multiple cells at once, click and hold inside a cell and drag the mouse cursor over other cells.
