Using the schedule grid

To select a time or block of time for the attendant schedule, use the schedule grid. The grid has the weekdays along the y-axis and the time of day along the x-axis. Cells on the grid represent a time interval, either 1 hour, 15 minutes, or 5 minutes depending on the current selection under Interval.

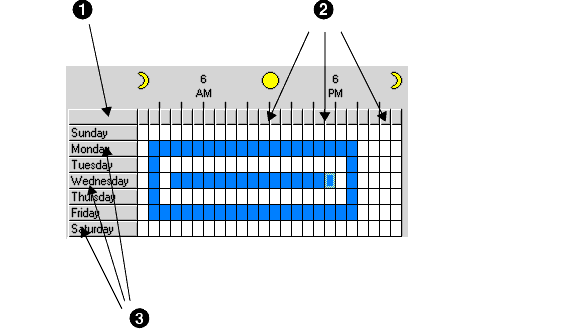

A cell can have one of two states, on (blue) or off (white). Clicking a cell toggles its state. In the following figure, each cell represents a quarter of an hour. If you select “15 Minute” under View detail, a scroll bar appears below the grid that you can use to view all the cells.


Tips for using the schedule grid To toggle (select or deselect) all cells, click the top left cell. To toggle the state of the first cell of a column and set all of the other cells in that column to the same state, click a column/hour header. This action selects that block of time for all days. To toggle the state of the first cell of a row and set all of the other cells in that row to the same state, click a row/day header. This action selects or deselects all hours for the selected day. To change the state of multiple cells at the same time, click a cell and drag the mouse cursor over the other cells.
