Tips for using the schedule grid

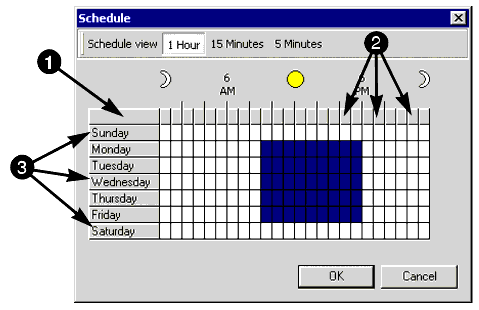

The schedule grid has the weekdays along the y-axis and the time of day along the x-axis. Cells on the grid represent a time interval, either 1 hour, 15 minutes, or 5 minutes, depending on the current selection.

A cell can have one of two states, on (blue) or off (white). Clicking a cell toggles its state.

To toggle the state of the first cell in the row and set all of the other cells in the row to the same state, click inside a row header.

To toggle the state of the first cell in the column and set all of the other cells in the column to the same state, click inside a column header.

To change the other cells to the same state as the first, click and hold inside a cell and drag the mouse cursor over other cells.

To change all cells to the same state as the top left cell, click inside the top left cell.

To show cells enabled for the full hour or as partially selected, use the 5 minutes, 15 Minutes, or 1 Hour icons

1 Select all cells in the grid

2 Column headers

3 Row headers
