Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002



Add IP Solutions

Upgrade to TN802B (R10)

Return to Task List


Note: The upgrade takes about 20 minutes

  1. Insert the flash disk into the right most slot on the TN802B IP Interface. On the terminal, a dialog box assigns a drive letter; the default is (D:).

  2. Right click on Start > Explore to open the Windows NT Explore pane and select the drive letter indicated in the previous step.

  3. Double-click on Medpro and select the Setup icon.

  4. Follow the Install Shield procedure to transfer all the necessary files to the TN802 IP Interface.

  5. In the Finish dialog box, select I will restart later; do not select Restart computer.

    6. This would be a good time to read the Readme.txt file.

  6. Click on Start > Settings > Control Panel > Services.

  7. Select IP Trunk and click on Startup. Do not click on Start.

  8. Under Startup Type, select Disabled and click OK to disable IP Trunk mode.


Note: If IP trunk and MedPro services are both set to automatic, the TN802B defaults to IP Trunk and MedPro features cannot be used.

  1. Select MedPro and click on Startup. Do not click on Start.

  2. Under Startup Type, select Automatic and click OK to enable MedPro mode.


Danger! When connected remotely via pcANYWHERE, only use the pcANYWHERE Restart Host Computer button on the toolbar to restart Windows NT.

  1. Click Start > Shut Down and select Restart the computer?

    or on the TN802 circuit pack:

    Press the recessed reset button on the faceplate (see TN802B IP Interface faceplate) of the TN802B IP Interface until the LCD shows a flashing MSHUT *. When the flashing stops and the asterisk disappears (about 2 min), reseat the circuit pack to restart the system.

    or on the SAT:

    1. Type busyout board UUCSS and press Enter.

    2. Type reset board UUCSS and press Enter.

    3. Type release board UUCSS and press Enter.

      4. Once the system is completely initialized, the LCD reads MEDPRO *.

  2. Affix the new TN802B label to the circuit pack.

  3. Disconnect the monitor, keyboard, and mouse.

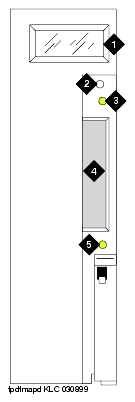

TN802B IP Interface faceplate

Figure Notes:
      1. LCD display

      2. Reset button (recessed)

      3. Red board status LED

      4. PCMCIA card slot

      5. Yellow PCMCIA disk-in-use LED

Return to Task List
