Configuring Syslog

Web Agent Procedure

To configure syslog event reporting:

1. Expand the Events folder.
2. Click Syslog.

The Syslog Configuration Web page is displayed.

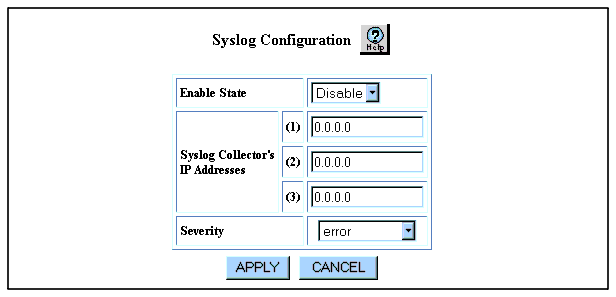

Figure�233:�Syslog Configuration Web Page

3. In the Enable State field, select Enable or Disable:
4. Enable--Enables syslog reporting to the IP addresses that you enter in the Syslog Collector's IP Addresses fields.
5. Disable--Disables syslog reporting. Syslog is disabled by default.
4. In the Syslog Collector's IP Addresses fields, enter the IP addresses of the remote syslog servers. You can specify a maximum of three syslog servers.
5. In the Severity field, select a severity level. See Table�164 for more information about each severity level. The default setting for this field is error.

The switch logs error messages of the severity that you select and of all higher severities.

6. Click Apply.
