Disabling or Enabling Port Redundancy

Web Agent Procedure

You can globally enable or disable port redundancy in the Port Redundancy Configuration Web page. Disabling redundancy does not delete the pairs.

To enable or disable a port redundancy

1. In the navigation pane, expand the L2 Switching folder, and then click Port Redundancy. The Port Redundancy Configuration Web page is displayed in the content pane.

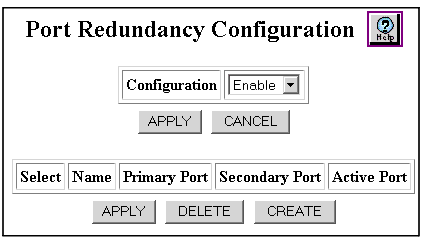

Figure�76:�Port Redundancy Configuration Web Page

2. In the Configuration field, select one of the following:
3. Enable--Enables all existing redundancy pairs.
4. Disable--Disables all existing redundancy pairs.

All existing redundancy pairs are enabled or disabled.
