Web Agent Procedure

To enable an access list:

NOTE: Before you can enable an access list, you must first configure the access list. For information about configuring access lists, see “Configuring Access Lists” earlier in this chapter.

1. Select Access Control from the Routing > IP > Configuration group on the Web Agent. The IP Access Control dialog box opens (Figure 9-10).

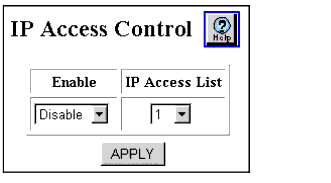

Figure 13-4. IP Access Control Dialog Box

2. Select Enable from the Enable field pull-down menu to filter inbound traffic.
3. Select the name of the access list to be used for filtering when IP access control is enabled from the IP Access List field pull-down menu.
4. Click APPLY to save your changes.
