Web Agent Procedure

To create a port redundancy pair

1. In the navigation pane, expand the L2 Switching folder.
2. Click Port Redundancy. The Port Redundancy Configuration web page appears.
3. Click Create. The Create Port Redundancy Pair web page appears.

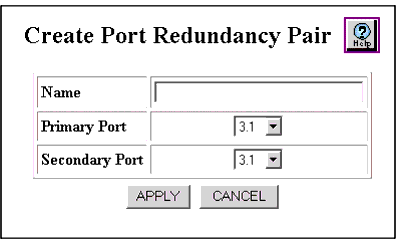

Figure 8-11. Create Port Redundancy Pair Web Page

4. Complete the following:
5. Name--Enter the pair’s name.
6. Primary Port--Select the pair’s primary port from the pull-down menu.
7. Secondary Port--Select the pair’s secondary port from the pull-down menu.
5. Click Apply.
