Media Gateway

The Media Gateway elements are the Avaya^TM G700 Media Gateway, the Media Modules, and the Avaya^TM Data Expansion Modules.

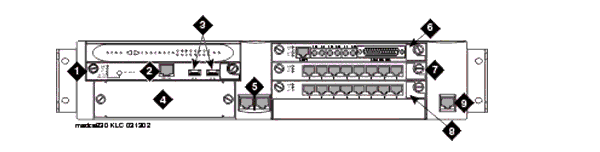

Figure 1. Avaya^TM G700 Media Gateway: Front View


1 Media Module Slot #1 (v1) 2 S8300 Services Port (used with cross-over ethernet cable) 3 S8300 USB-Series Modem connection 4 Avaya Expansion Module slot 5 10/100 Base-T Ethernet Ports (ext1, ext2) 6 Media Module Slot #2 (v2)	7 Media Module Slot #3 (v3) 8 Media Module Slot #4 (v4) 9 Console Interface
