Avaya S8700 Media Server system with WAN branch offices (small or large configuration)

As shown in Figure 1, the G700 Media Gateways operate in stacks with Avaya P330 switches through Octaplane connections. The remote LANs may be composed of switches from other manufacturers. In this configuration, each G700 may be equipped with LSPs to guarantee survivability in case connection to the central server is lost.

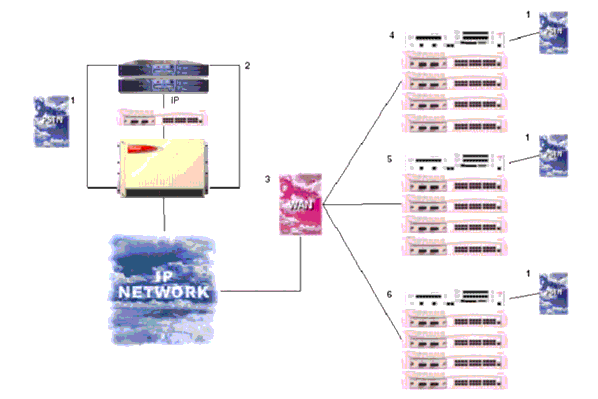

Figure 1. Avaya Media Gateways in Avaya Stacks with S8700 Media Server EMS

1. Public Service Telephone Network
2. S8700 Media Server with communications server in stack
3. Wide Area Network
4. G700 Media Gateway in Avaya switch stack at remote location A
5. G700 Media Gateway in Avaya switch stack at remote location B
6. G700 Media Gateway in Avaya switch stack at remote location C
