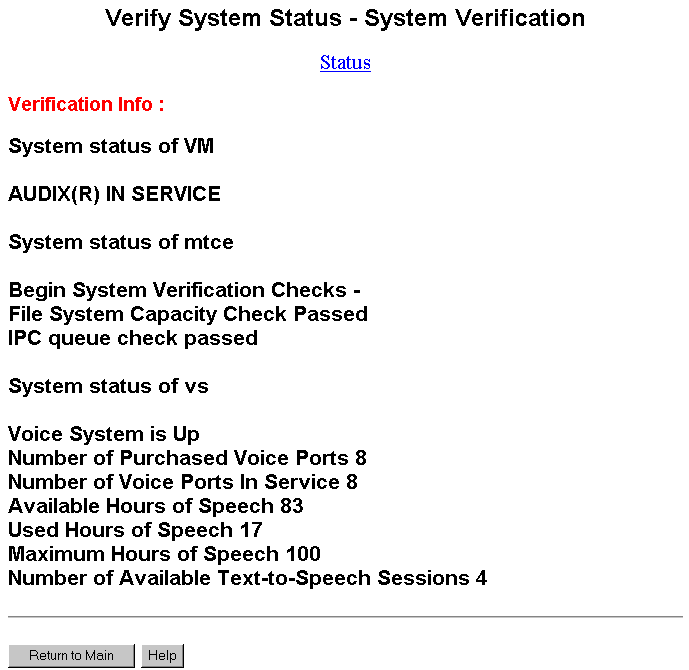

Verify System Status - System Verification Page





Table: Verify System Status by Module
System Status of (Module)	Verifications	Results Page Information
VM (Voice Messaging)	Messaging	IN SERVICE/ OUT OF SERVICE
mtce (maintenance)	File System Capacity	passed/failed
	IPC queue	passed/failed
vs (voice system)	The voice system	up/down
	Number of Purchased Voice Ports	number of ports
	Number of Voice Ports In Service	number of ports
	Purchased Hours of Speech	number of hours
	Used Hours of Speech	number of hours
	Potential Hours of Speech	number of hours



Table: Verify System Status for Voice Ports and Speech Storage
Voice System (vs) Module Status Item	Definition
Number of Purchased Voice Ports	The number of ports on the messaging system that are available for use.
Number of Voice Ports in Service	The number of ports that are actually accepting and processing calls on the messaging system. It is recommended that this number matches the number of purchased ports. If it does not, follow the procedure in Displaying Voice Equipment Status to identify which ports are not in service.
Available Hours of Speech	The number of hours of speech on the messaging system's hard disk that are available for use.
Used Hours of Speech	The number of hours of speech that are currently used to store voice messages and other types of messaging data. This number needs to be less than 80 percent of the purchased hours of speech. If the value listed in the report is greater than 80 percent of the purchased hours of speech, contact your sales representative to purchase additional hours of speech.
Maximum Hours of Speech	The number of hours of speech left on the hard disk that can be purchased and activated. If this number is 0 and additional hours of speech are needed.
