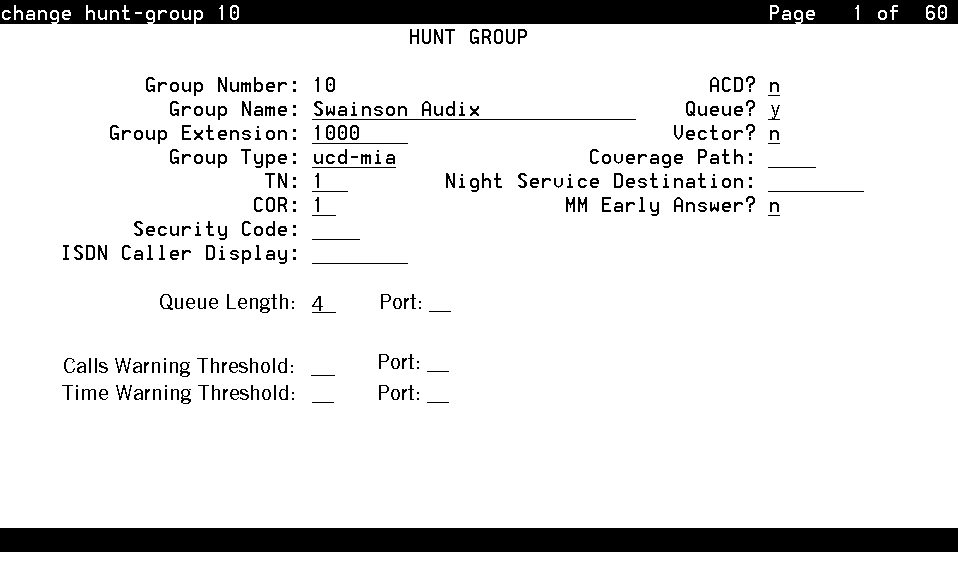

Field Name
|
Valid Input
|
Description/Procedure
|
|
Group Number
|
|
Enter the number to identify the INTUITY AUDIX
hunt group. This number, preceded by the letter h, is entered
in the voice port Coverage Path screen and in subscriber coverage
paths.
|
|
Group Name
|
|
Enter the name that you want to appear on display
sets when subscribers call the INTUITY AUDIX system.
|
|
Group
Extension
|
|
Enter the extension number that you want local
and remote subscribers to dial to retrieve their messages from the
INTUITY AUDIX system. This is the number people dial to hear the
system greeting, "Welcome to AUDIX."
|
|
Group Type
|
ucd-mia
|
|
|
TN
|
Use default.
|
|
|
COR
|
|
Enter the Class of Restriction (COR) you want
assigned to the extension that subscribers will call to reach the
INTUITY AUDIX system. For security reasons, assign AUDIX groups
their own CORs that have been restricted from accessing all outgoing
trunks or only those trunks that are needed for Outcalling or AMIS
Analog Networking. The default COR is not recommended.
|
|
Security Code
|
Leave blank.
|
|
|
ACD
|
n
|
This field is normally disabled. It can be used
if the switch supports CMS with the EAS feature. CMS and EAS are
not covered in this book.
|
|
Queue
|
y
|
|
|
Vector
|
n
|
The INTUITY AUDIX hunt group can be vector controlled
if call vectoring is a feature on the switch.
|
|
Coverage Path
|
Leave blank.
|
|
|
Night Service Destination
|
Leave blank.
|
Enter the destination to which calls to this
hunt group are redirected when the hunt group is in the night service
mode. Allowable entries are an assigned extension number, the attendant,
or a blank field. Leave the field blank for most applications, unless
the application requires calls to be redirected when the hunt group
is in night service mode.
|
|
MM Early Answer
|
n
|
|
|
Queue Length
|
|
Enter the number of configured INTUITY AUDIX
voice ports. For example, if you have 8 voice ports administered
to carry voice messaging traffic, enter 8 in this field.
|
|
Calls Warning Threshold
|
Leave blank.
|
|
|
Calls Warning Port
|
Leave blank.
|
|
|
Time Warning Threshold
|
Leave blank.
|
|
|
Time Warning Port
|
Leave blank.
|
|
