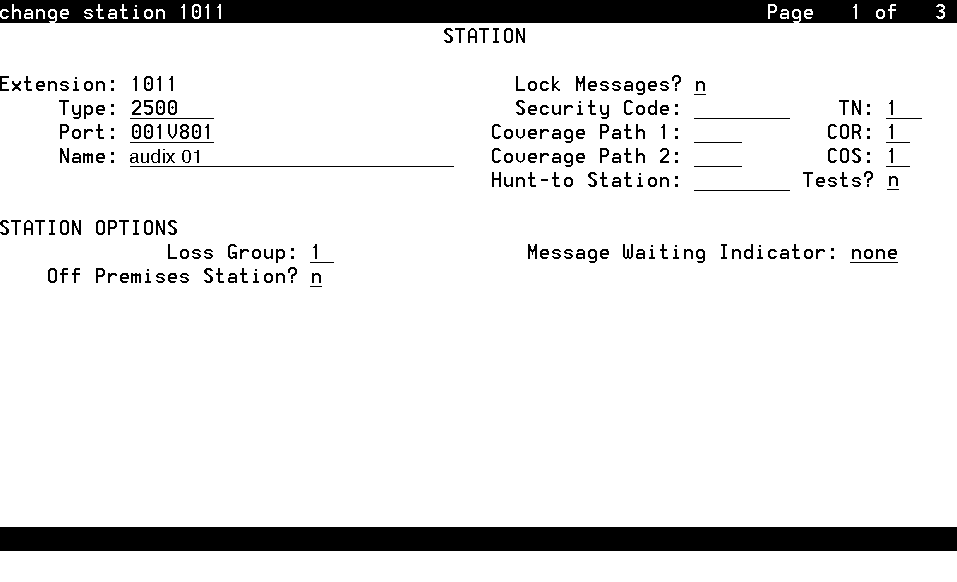

Station Screen, Page 1






Table: Field Definitions: Station Screen, Page 1, for AUDIX Ports
Field Name
Valid Input
Description/Procedure
Extension
Enter a unique, valid extension number (from three to five digits) for the voice port from the dial plan.

Type
2500

Port
Enter a seven-character port number, for example,�001V801, where 001 is the number of the media gateway, V8 is the slot number of the CWY1 board (always V8), and 01 is the port number of the CWY1 board.

Name
Enter a name to identify the port you are administering. Since this is a virtual port on the CWY1 borad, you may wish to include audix in its name (for example, audix 01).

Lock Messages
n

Security Code
Leave blank.

Coverage Path 1
Leave blank.

Coverage Path 2
Leave blank.

Hunt-to Station
Leave blank.

TN
Use default.

Class of Restriction (COR)

To prevent toll fraud, it is recommended that you create a COR for voice ports that allows subscribers to call only other numbers with the same COR. If you decide later that subscribers need to call numbers with different CORs, add permissions for the other CORs one at a time. The AMIS Analog Networking, Message Delivery, and Outcalling features require the ability to call numbers with different CORs.

Class of Service (COS)

Create a COS for the voice ports that permits only the Data Privacy and Restrict Call Forwarding Off-Net features. It is recommended that you do not enable any other features on the COS. COS 5 defaults to this setup.

Tests
n

Loss Group
(R8 and later)
Use default.

Off-Premise Station
n

Message Waiting Indicator
none

Message Lamp Ext.
n
