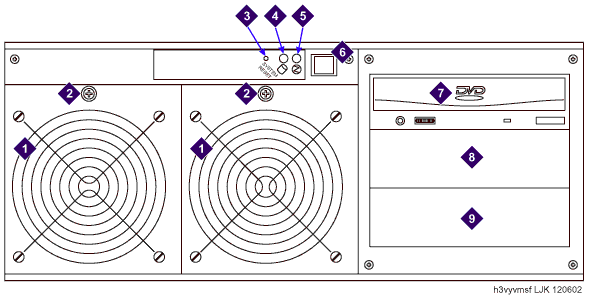

Front view of the Message Storage Server-Standard (MSS-S)

Redundant chassis fan
Chassis fan retaining screw
System reset button
Disk drive access indicator
System power indicator
System power on/off button
DVD-RAM drive
IDE RAID disk drive C (hdc)
IDE RAID disk drive A (hda)
