Frequently Asked Questions

---

What are the R7si/R8si control carriers?

These carriers can install in MCCs:

• J58890AH control carrier (R7si PPN cabinets only)


• J58890AJ duplicated control carrier (R7si PPN cabinets only; optional)


• J58890BB port carrier (PPN and EPN cabinets)


• J58890AF expansion control carrier (EPN cabinets only)

These carriers can install in SCCs:

• J58890L basic control cabinet (PPN only)


• J58890M duplicated control cabinet (PPN only)


• J58890N expansion control cabinet (EPN only)


• J58890H port cabinet (EPN and PPN)

The power units and circuit packs shown in the carriers are representative examples only. The actual installed hardware may vary from that shown in the illustrations.

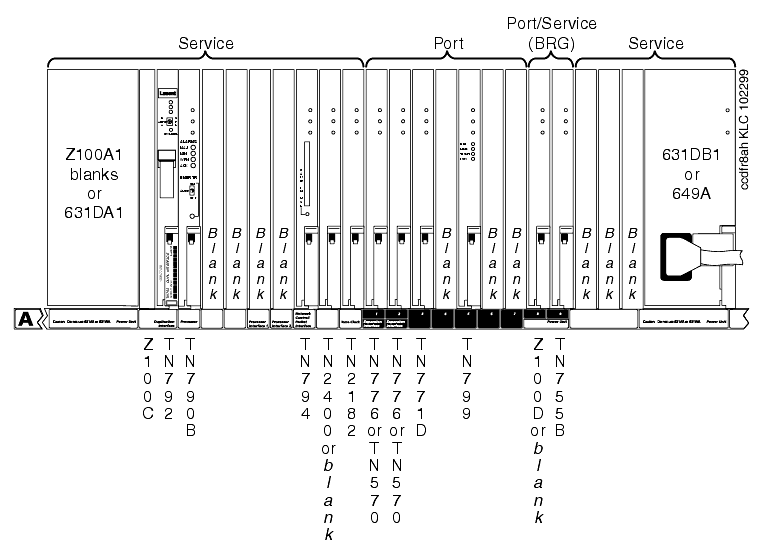

J58890AH control carrier

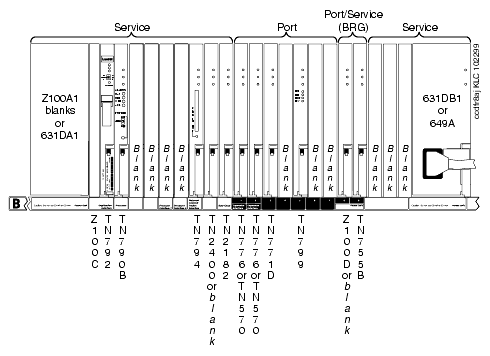

J58890AJ duplicated control carrier

J58890BB port carrier

J58890AF expansion control carrier

J58890L basic control cabinet

J58890M duplicated control cabinet

J58890N expansion control cabinet

J58890H port cabinet

---
