Add IP Solutions

Connect the Modem

Return to Task List


Note: These instructions are for connecting the U.S. Robotics modem supplied to U.S. customers only. If using a different modem, follow the manufacturer's instructions on connecting the modem.

  1. Connect the RS232 port of the modem to the MODEM connector of the TN802B external cable assembly.


Note: Check the labels near the connectors; the MODEM and COM2 connectors look the same.

  1. Connect an analog telephone line to the left most analog-line port on the modem as shown in External Modem Connections for U.S. Robotics Modem.

  2. Make sure that the modem's DIP switches are set as shown in External Modem Connections for U.S. Robotics Modem and U.S. Robotics Modem Dip Switch Settings.

  3. Plug the modem into an AC power outlet.

  4. Turn on the modem using the switch on the front of the modem.

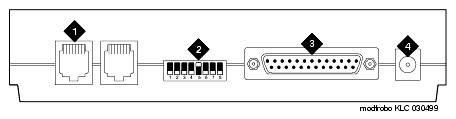

External Modem Connections for U.S. Robotics Modem

Figure Notes:
      1. Connect analog line here.

      2. DIP switch 5 must be up.

      3. Connect MODEM connector here.

      4. Connect power connector here.

U.S. Robotics Modem Dip Switch Settings
Dip Switch
Setting
Description

1

UP
DOWN

Data Terminal Ready normal
Data Terminal Ready override

2

UP
DOWN

Verbal result codes
Numeric result codes

3

UP
DOWN

Suppress result codes
Display result codes

4

UP
DOWN

Echo offline commands
No echo, offline commands

5

UP
 DOWN

Auto answer on first ring or higher if specified in NVRAM
Auto answer off

6

UP
DOWN

Carrier detect normal
Carrier detect override

7

UP
DOWN

Load NVRAM defaults
Load factory defaults

8

UP
DOWN

Dumb mode
Smart mode

Return to Task List
