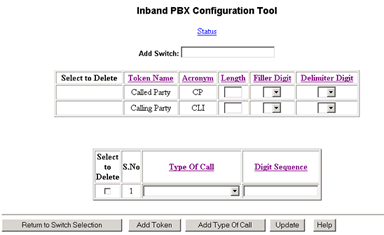

| Table: Inband PBX Configuration
Tool Page Field Descriptions |
|
Field
|
Valid Input
|
Description
|
|
Add Switch
|
A name consisting of alphanumeric characters
|
Specifies the name of the switch to be integrated.
|
|
Token Name
|
- Called Party Number
(CP)
- Calling Line Identification (CLI)
|
Indicates the name of the token.
|
|
Acronym
|
|
Indicates the acronym of the token.
|
|
Length
|
- v (variable)
- V (variable)
- Fixed integer from
1 to 9
|
Specifies the length of the field.
|
|
Filler Digit
|
- *
- #
- A
- B
- C
- D
- An integer from 0
to 9
|
Specifies the filler character.
|
|
Delimiter Digit
|
- #
- *
- A
- B
- C
- D
- An integer from 0
to 9
|
Specifies the delimiting character, if any,
for the field.
|
|
Type of Call
|
- Busy_External
- Busy_Internal
- Day_Service
- Direct_External
- Direct_Internal
- Leave_Word_Calling
- Night Service
- REF_MWL
- Ring_No_Answer_External
- Ring_No_Answer_Internal
|
Describes the various types of calls supported
by the switch. The list shows the choices available for the type
of call.
|
|
Digit Sequence
|
Alphanumeric characters
|
Describes the call string sent by the switch
for the corresponding type of call.
|
