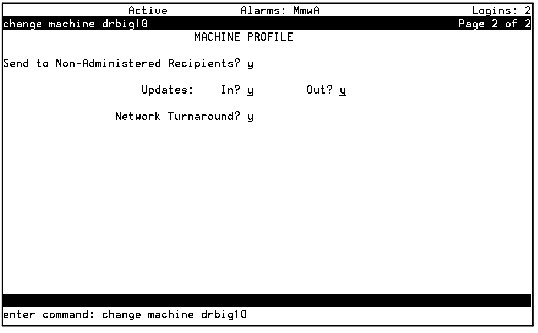

Machine Profile Screen for a Remote Machine

Machine Profile Screen for a Remote Machine — Page 2

Table: Field Definitions; Remote Machine Profile Screen — Page 2

Field

Valid Input

Description

Send to Non-
Administered Recipients?

y= yes
n = no

Enter y if the system will attempt to deliver messages to non-administered remote recipients.

Enter n if messages cannot be sent to nonadministered recipients.

Updates:
In?

y= yes
n = no

Enter y if the local system will accept updated database information from the remote system (the Updates Out field must also be set to y on the local Machine Profile screen).

Set to y only after testing the network end-to-end during initial administration.

Updates:
Out?

y= yes
n = no

Enter y if the local system will send updated database information to the remote system (the Updates In field must also be set to y on the local Machine Profile screen).

Set to y only after testing the network end-to-end during initial administration.

Network Turnaround

y= yes
n = no

If you are conducting an acceptance test, enter n.

After the acceptance tests, enter y if a network connection that originated from this remote system is allowed to turn around after the remote system has sent all of its network data to the local system.

The local system may then return update information, voice mail, and status on the same connection. This feature reduces toll charges and increases the efficiency of the system in networks with more than 10 machines.

The Network Turnaround field must be set to y on the local Machine Profile screen for this feature to work between the local system and the remote system. For more information on this feature, see Remote Subscriber Administration.

Table: Field Definitions; Remote Machine Profile Screen — Page 2
Field	Valid Input	Description
Send to Non- Administered Recipients?	y= yes n = no	Enter y if the system will attempt to deliver messages to non-administered remote recipients. Enter n if messages cannot be sent to nonadministered recipients.
Updates: In?	y= yes n = no	Enter y if the local system will accept updated database information from the remote system (the `Updates Out` field must also be set to y on the local Machine Profile screen). Set to y only after testing the network end-to-end during initial administration.
Updates: Out?	y= yes n = no	Enter y if the local system will send updated database information to the remote system (the `Updates In` field must also be set to y on the local Machine Profile screen). Set to y only after testing the network end-to-end during initial administration.
Network Turnaround	y= yes n = no	If you are conducting an acceptance test, enter n. After the acceptance tests, enter y if a network connection that originated from this remote system is allowed to turn around after the remote system has sent all of its network data to the local system. The local system may then return update information, voice mail, and status on the same connection. This feature reduces toll charges and increases the efficiency of the system in networks with more than 10 machines. The `Network Turnaround` field must be set to y on the local Machine Profile screen for this feature to work between the local system and the remote system. For more information on this feature, see Remote Subscriber Administration.
