Powering the 4600 IP Telephone

Powering the 4600 IP Telephone

With one exception, there are two options to power 4600 Series IP Telephones. There is only one way to power the 4630 IP Telephone. All 4600 Series IP Telephones can be locally powered with a Telephone Power Module (DC power jack), available separately. In addition, the 4601/4601+/4602/4602SW/4602SW+/4606/4610SW/4612/4620/4620SW/4621SW/4622SW/4624/4625SW/4630SW IP Telephones support IEEE 802.3af-standard LAN-based power. Before installation, verify with the LAN administrator whether the LAN supports IEEE 802.3af, and if so, whether the telephone should be powered locally or by means of the LAN.

The 4690 IP Conference Telephone is powered using a power interface module placed between the LAN and the telephone on the Category 5 network cable.

NOTE: If your installation includes a 30A Switched Hub, follow the installation instructions included in the Switched Hub box.

The last step in assembling the 4600 Series IP Telephone must be applying power. Apply power either by plugging the power cord into the power source (local powering) or plugging the modular line cord into the Ethernet wall jack (IEEE powering).

CAUTION: Failure to connect the proper cables with the proper jacks might result in an outage in part of your network.

Figure 1 through Figure 11 provide illustrations to connect cords to jacks on 4600 IP Series Telephones. See the chart below to determine the applicable illustration. Use the illustrations and associated procedures as appropriate for telephone assembly.


Telephone Model:	See:
4606 4612 4624	Figure 1 Figure 1 Figure 1
4601/4601+ 4602/4602SW/4602SW+	Figure 2 and Figure 3
4610 4620/4620SW 4621SW 4622SW 4625SW	Figure 4 and Figure 5
4630	Figure 6
4630SW	Figure 7 and Figure 8
4610SW	Figure 9 and Figure 10
4690	Figure 11

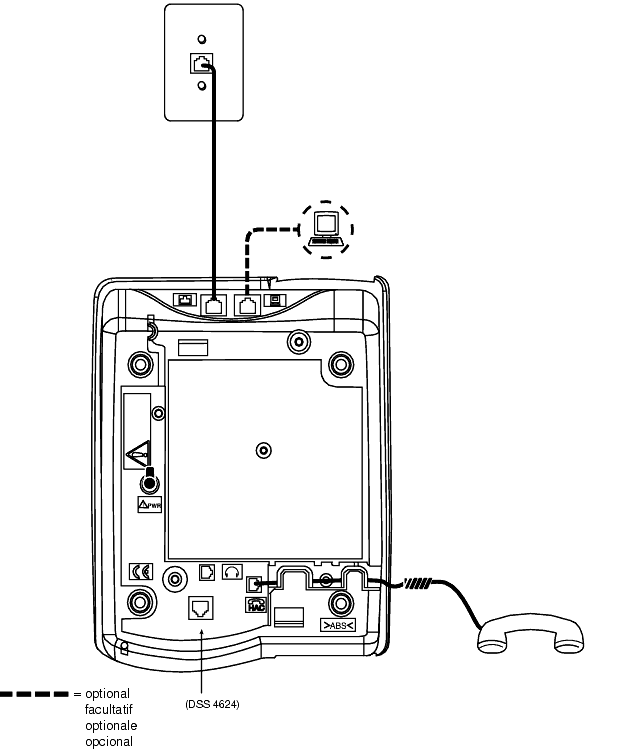

Figure 1: Connection Jacks on a 4606/4612/4624 IP Telephone

Plug one end of the H4DU 4-conductor coiled handset cord into the telephone and the other end into the handset.
Plug one end of the first Category 5 modular line cord into the Ethernet jack of the PC and the other end into the secondary Ethernet jack on the 4600 Series IP Telephone, if appropriate.

NOTE: The 4602SW/4602SW+ may have PC and LAN jacks reversed from their pictures. Ensure that you make the right connections to the right equipment, as noted by the icons on the telephone jacks.

Plug one end of the second Category 5 modular line cord into the Ethernet jack on the 4600 Series IP Telephone. Plug the other end of this cord into the Ethernet wall jack. If the telephone is to be IEEE-powered, you are finished. Do not proceed to Step 4.
If the telephone is to be powered locally in the United States and Canada, plug the power cord into the 4600 Series IP Telephone, and the power cord plug into the wall socket.

If the telephone is to be powered locally outside the United States and Canada, connect the 1151 power brick to the power cable. Connect the other end of the power cable to the 4600 Series IP Telephone, and the plug to the wall socket.

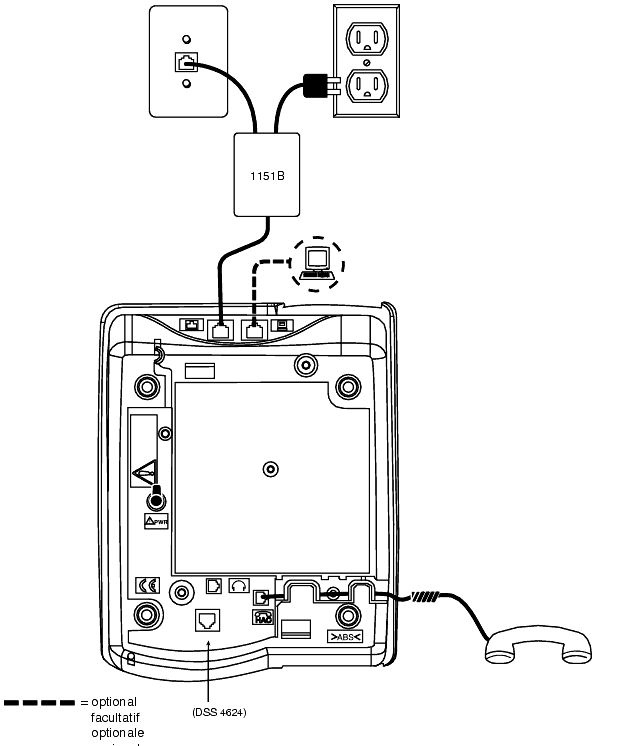

Figure 2: Connection Jacks on a 4601/4601+/4602/4602SW/4602SW+ IP Telephone - Option A

Figure 3: Connection Jacks on a 4601/4601+/4602/4602SW/4602SW+ IP Telephone - Option B

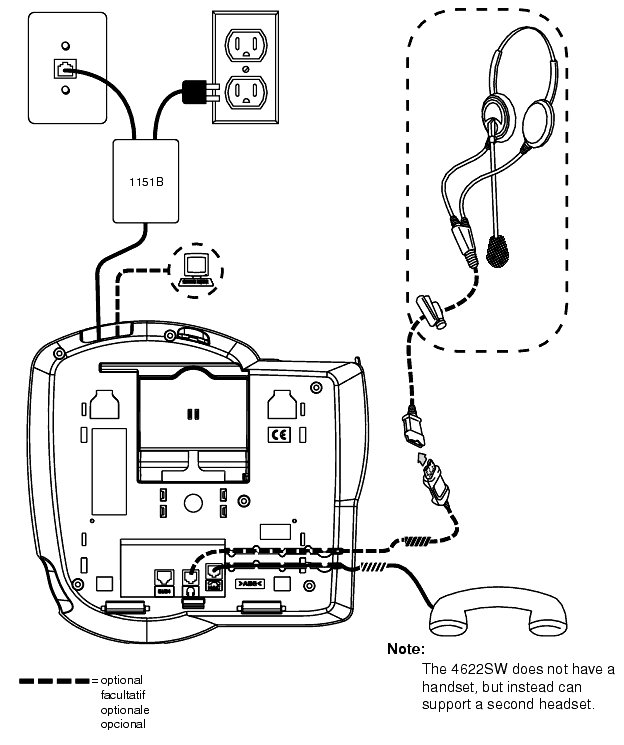

Figure 4: Connection Jacks on a 4610/4620/4620SW/4621SW/4622SW/4625SW/4630SW IP Telephone - Option A

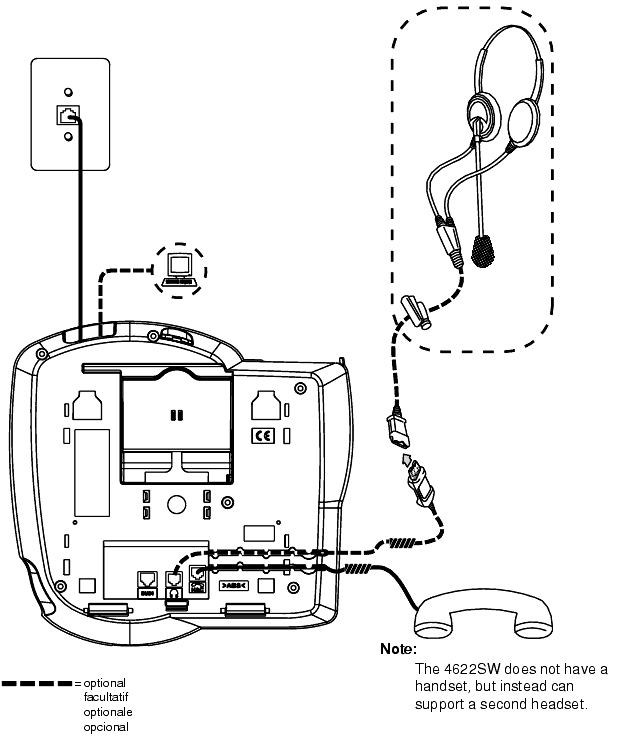

Figure 5: Connection Jacks on a 4610/4620/4620SW/4621SW/4622SW/4625SW/4630SW IP Telephone - Option B

Figure 6: Connection Jacks on a 4630 IP Telephone

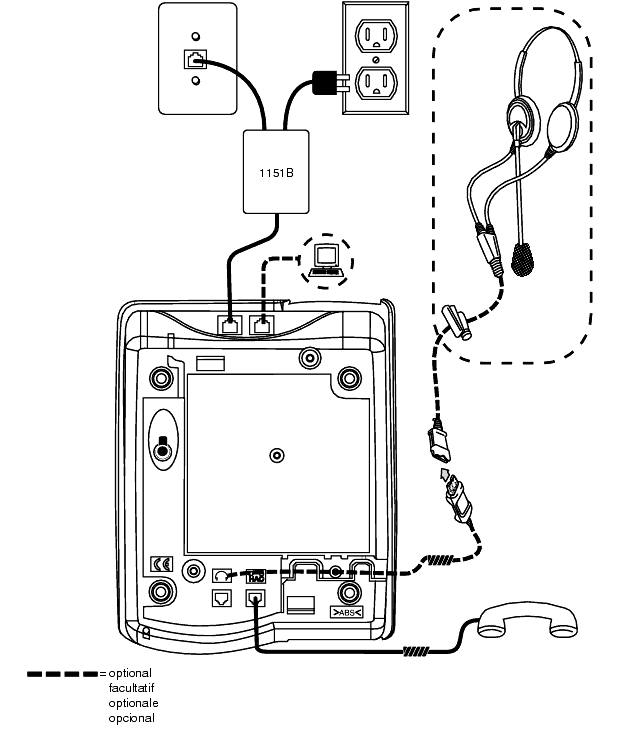

Figure 7: Connection Jacks on a 4630SW IP Telephone - Option A

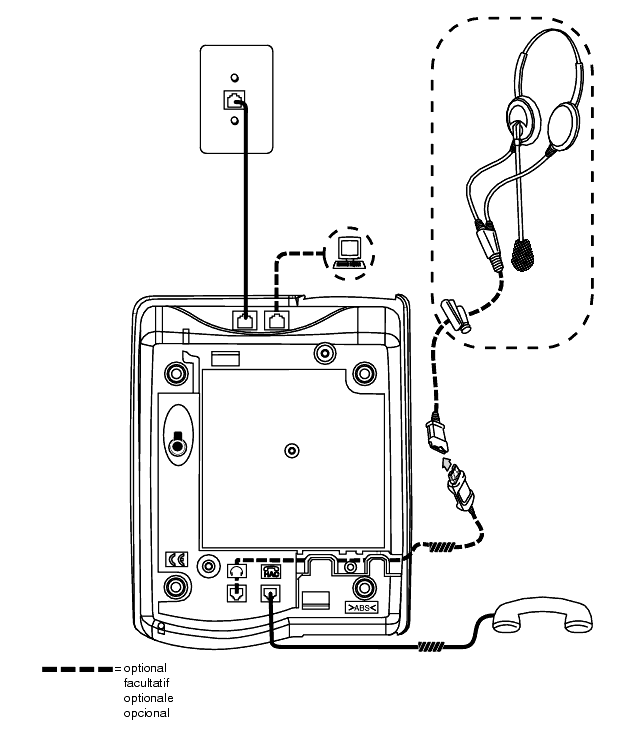

Figure 8: Connection Jacks on a 4630SW IP Telephone - Option B

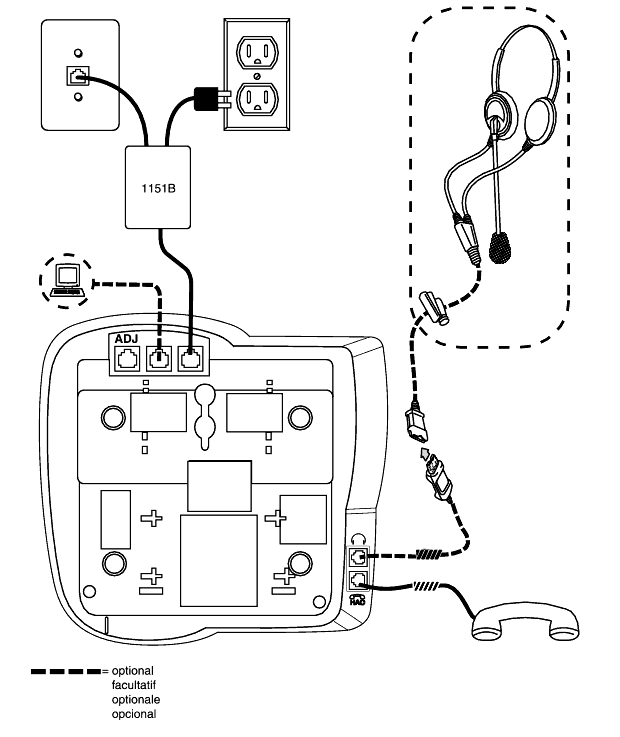

Figure 9: Connection Jacks on a 4610SW IP Telephone - Option A

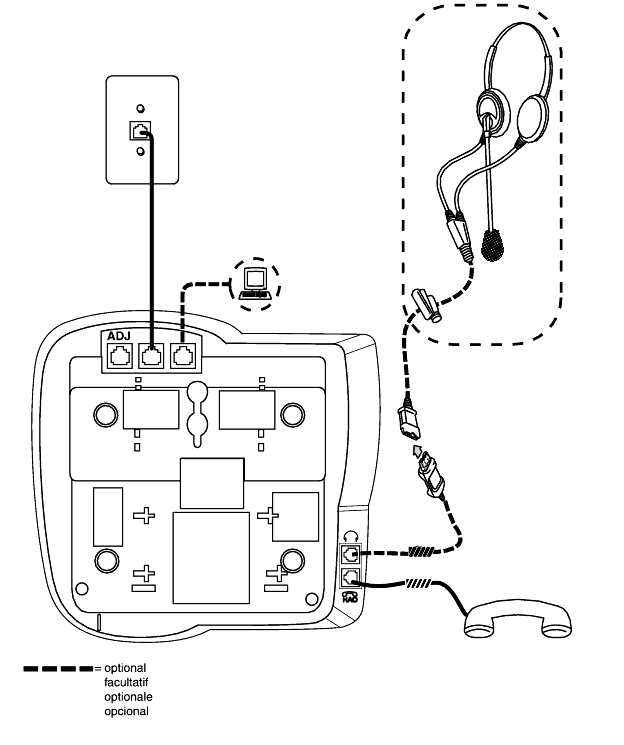

Figure 10: Connection Jacks on a 4610SW IP Telephone - Option B

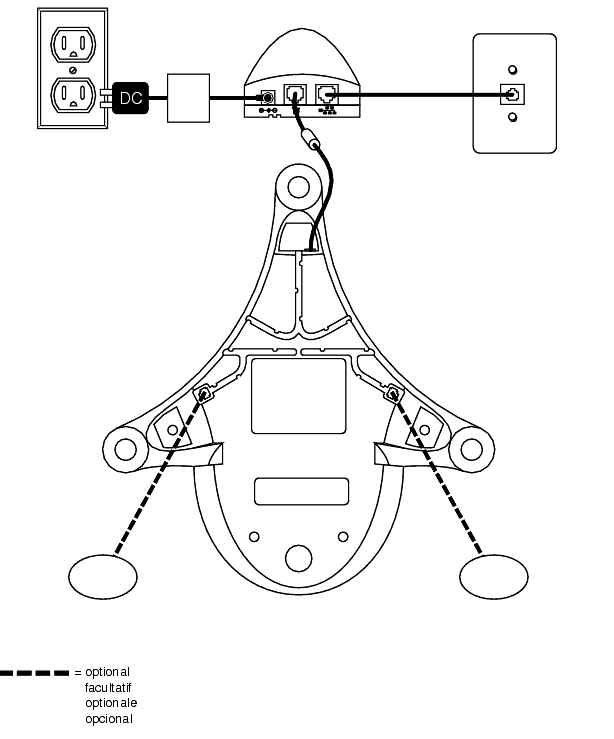

Figure 11: Connection Jacks on a 4690 IP Conference Telephone
