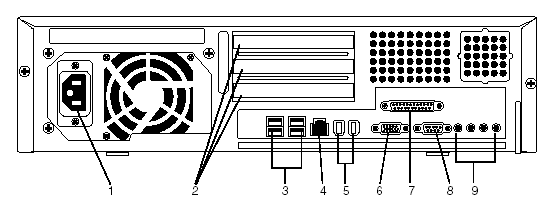

Item

Connection Type

IR System Use

1

Power connector

Provides power and should be connected to an Uninterruptible Power Source (UPS).

2

PCI card slots

Holds the telephony cards that provide connections for T1/E1 lines. Up to two telephony cards may be installed. If VoIP service is used exclusively, no telephony cards are required.

3

USB connectors (four)

Two of these connectors are reserved for the keyboard and mouse that are part of the country kit. A keyboard and mouse are not required.

4

Twisted-pair Ethernet connector

Links the platform to the LAN for access to servers.

5

IEEE 1394 connectors (two)

6

VGA video connector

Connects to the video monitor, if one is used.

7

Parallel connector

May be connected directly to a printer, if desired.

8

Serial connector (RS-232)

The serial port on the Sun Blade 150 platform is used to connect to the Access Security Gateway (ASG), which is used to control dial-up access to the Avaya IR system. Configuring the serial port for bi-directional communication allows remote users, such as Avaya support staff, to establish a connection to the system for remote administration and troubleshooting.

9

Audio module connectors
