Unassigning services from channels

The Integrity system administrator found that unused fax service were assigned to five channels and decided to unassign the services to eliminate confusion.

To unassign services from channels:

1. Go to the Channel Services screen (Configuration Management > Channel Services).
2. Select the channels you want to unassign from their services.

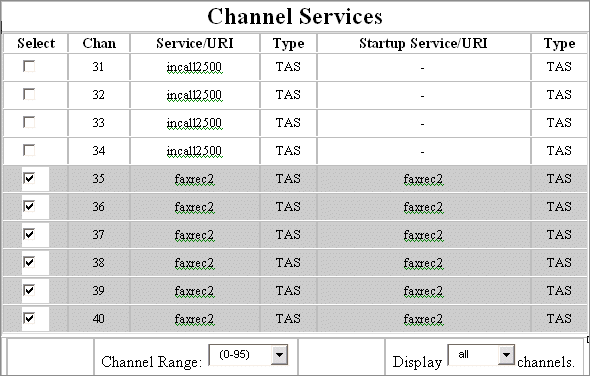

   The Integrity system administrator made the entries shown in the following screen to unassign channels 35 through 40.



3. Select Unassign Selected.

   The system displays a confirmation message.

4. Select OK.

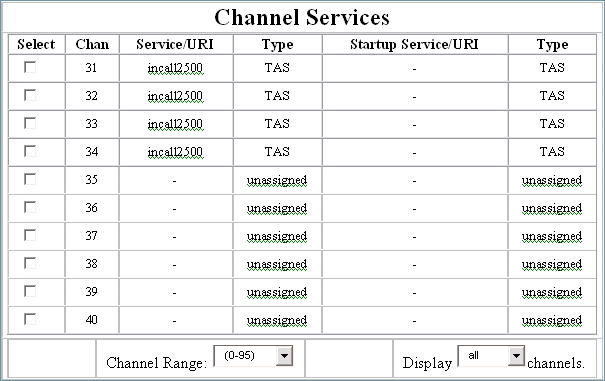

   The service is immediately unassigned from the channel or channels. The screen that follows shows the result of the change made by the Integrity system administrator.
