Standard Licensing
In Standard Licensing:
- The WebLM servers are unaware of the existence of other WebLM servers. The Primary WebLM server and the Secondary WebLM server (if configured) function independently of each other.
- Licenses cannot be shared across WebLM servers.
In the Standard licensing mechanism, an IR system can have:

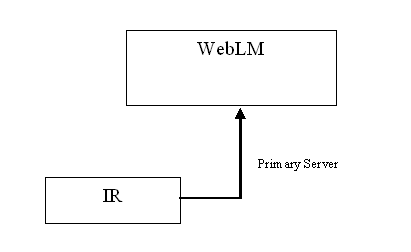

- A Primary WebLM server configured. After startup, the IR system contacts the Primary WebLM server for licenses, depending upon the number of licenses configured under Web Administration for a particular feature. The NVRam of the IR system is updated, depending upon the number of licenses acquired.
Note: If the IR system only has a Primary WebLM server configured, it does not matter if the IR system uses the Standard likening mechanism or the Enterprise Wide licensing mechanism. The Primary WebLM server is the only point of contact for the IR system to acquire licenses.

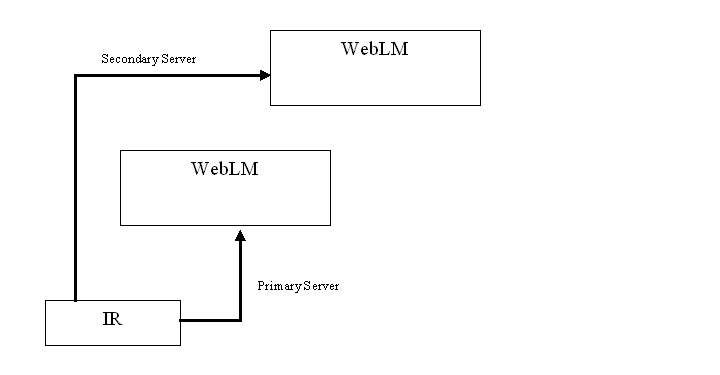

- A Primary WebLM server and a Secondary WebLM server configured, and working independently of each other. After startup, the IR system contacts the Primary WebLM server for licenses, depending upon the number of licenses configured under Web Administration for a particular feature. If the licenses requested by the IR system are not made available by the Primary WebLM server, the IR system contacts the Secondary WebLM server for licenses. The number of license acquired by the IR system is the sum of the licenses made available by the Primary and Secondary WebLM servers.The NVRam of the IR system is updated, depending upon the number of licenses acquired. If the Primary WebLM server or the Secondary WebLM server is non functional, the licenses configured on that server cannot be re-distributed, and are unavailable for use.
Note: While using a Primary WebLM server and a Secondary WebLM server, Avaya recommends you configure the Primary WebLM server on the IR platform itself. Use the Licensing Configuration screen of Web Administration to configure Primary WebLM Server URL field to point to the URL of the IR system. Configure Secondary WebLM Server URL field to point to URL of the Secondary WebLM server.

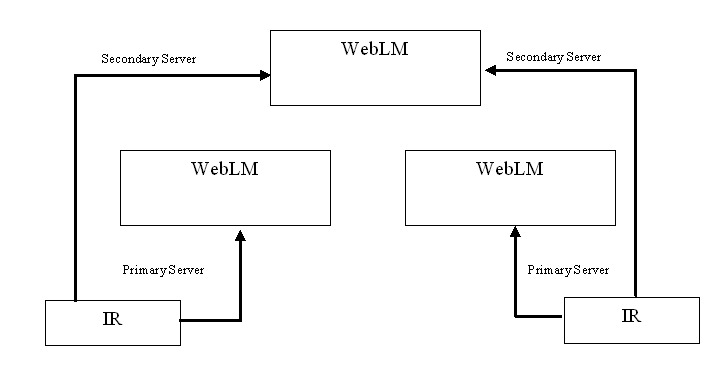

- A Primary WebLM server and a Secondary WebLM server configured, and working independently of each other. This Secondary WebLM server may be shared by more than one IR system. After startup, the IR system contacts the Primary WebLM server for licenses, depending upon the number of licenses configured under Web Administration for a particular feature. If the licenses requested for by the <mav_prod_short system are not made available by the Primary WebLM server, the mav_prod_short> system contacts the Secondary WebLM server for licenses. The number of licenses acquired by the IR system is the sum of the licenses made available by the Primary and Secondary WebLM servers.The NVRam of the IR system is updated, depending upon the number of licenses acquired. If the Primary or the Secondary WebLM server is non functional, the licenses configured on that server cannot be re-distributed, and are unavailable for use.
Note: While using a Primary WebLM server and a Secondary WebLM server, Avaya recommends you configure the Primary WebLM server on the IR platform itself. Use the Licensing Configuration screen of Web Administration to configure the Primary WebLM Server URL field to point to the URL of the IR system. Configure the Secondary WebLM Server URL field to point to the URL of the Secondary WebLM server.
