Home > Maintenance > Getting inside the chassis > S3210R front view

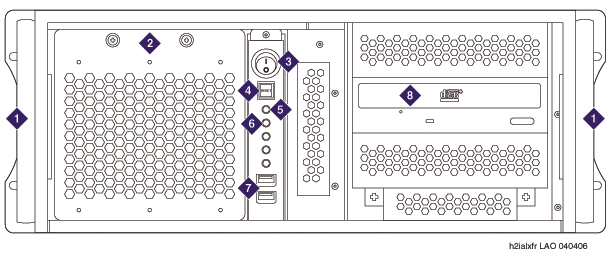

S3210R front view (without front bezel)

1
 Handles
2
 Front fan
3
 On/off switch
4
 System reset switch
5
 Power LED indicator
6
 Hard disk drive LED indicator
7
 USB ports
8
 DVD-RW
