Removing or replacing the front bezel

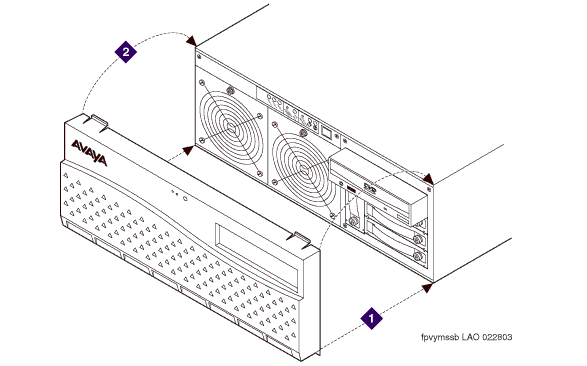

Removing the front bezel

2 Press the tabs on the top of the front bezel to release it.

1 Tilt the bezel forward, and then lift it out.

Replacing the front bezel

1 Insert the tabs on the bottom of the front bezel into the chassis.

2 Push the bezel upright until the two upper tabs snap into place under the front cover.
