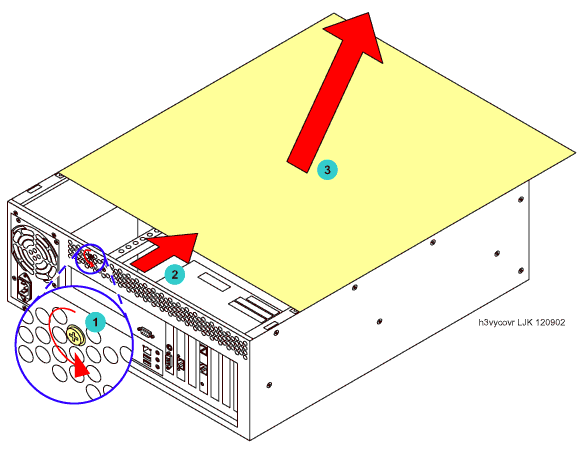

Removing the top cover
1 Loosen the screw latch for the top cover.
2 Slide the cover towards the front of the unit to release it.
3 Lift the cover off.
Replacing the top cover
3 Place the top cover on the chassis so that it overhangs the
front of the machine.
2 Align the tabs under the cover with the rail slots, and then
push the cover back.
1 Tighten the screw latch.
