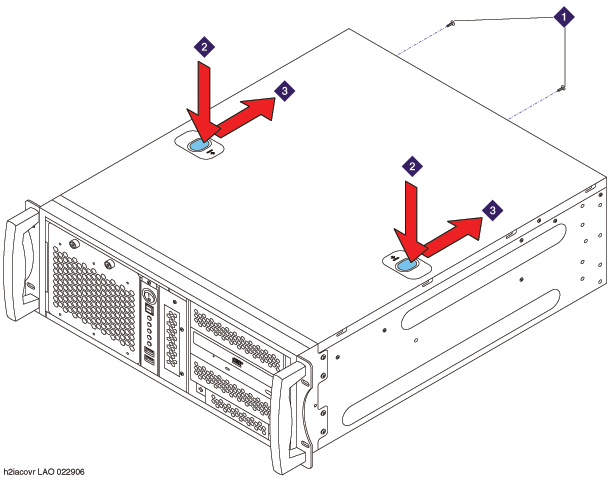

Removing the top cover
1 With your thumbs, push down on the cover release buttons. While holding down the buttons, slide the cover towards the back of the server.
2 Slide the cover off the back of the chassis.
Replacing the top cover
2 Place the top cover on the chassis so that it overhangs the
rear of the machine.
1 Slide the cover forward until it snaps into place.
