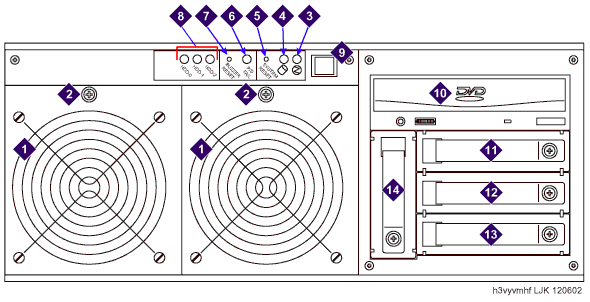

| 1 |
Redundant
chassis fans |
| 2 |
Chassis
fan retaining screw |
| 3 |
System
power indicator |
| 4 |
Disk
drive access indicator for any hard disk drive |
| 5 |
System
reset button |
| 6 |
Power
supply failure indicator |
| 7 |
Power
supply alarm buzzer reset switch |
| 8 |
Disk
drive access indicator for each hard disk drive (HDD 0, 1, and
2) |
| 9 |
System
power on/off button |
| 10 |
DVD-RAM
drive |
| 11 |
SCSI
RAID drive 0 (HDD 0) |
| 12 |
SCSI
RAID drive 1 (HDD 1) |
| 13 |
SCSI
RAID drive 2 (HDD 2) |
| 14 |
SCSI
fan tray |
