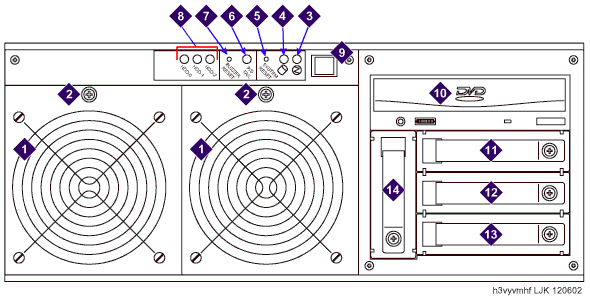

1
|
Redundant chassis fans |
|
2
|
Chassis fan retaining screw |
|
3
|
System power indicator |
|
4
|
Disk drive access indicator for any hard disk
drive |
|
5
|
System reset button |
|
6
|
Power supply failure indicator |
|
7
|
Power supply alarm buzzer reset switch |
|
8
|
Disk drive access indicator for each hard disk
drive (HDD 0, 1, and 2) |
|
9
|
System power on/off button |
|
10
|
DVD-RAM drive |
|
11
|
SCSI RAID drive 0 |
|
12
|
SCSI RAID drive 1 |
|
13
|
SCSI RAID drive 2 |
|
14
|
SCSI fan tray |
