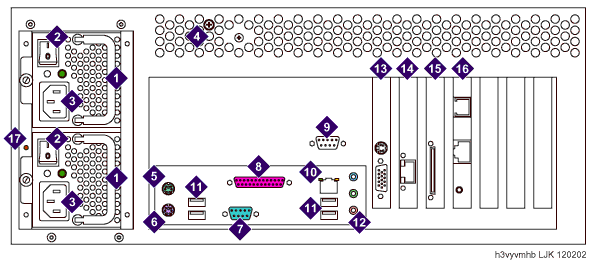

1
|
Redundant power supply |
|
2
|
Power supply on/off switch |
|
3
|
AC power receptacle |
|
4
|
Latch for top cover |
|
5
|
Mouse connector |
|
6
|
Keyboard connector |
|
7
|
Serial port (COM1) |
|
8
|
Parallel port (not used) |
|
9
|
Serial port (COM2), used for the Remote Maintenance
Board (RMB) |
|
10
|
Corporate LAN interface |
|
11
|
USB ports |
|
12
|
Audio connectors (not used) |
|
13
|
Video card (contains monitor connector) |
|
14
|
Network interface card (used for the private LAN
to the Avaya MASs) |
|
15
|
SCSI RAID controller card |
|
16
|
Remote Maintenance Board (connects to analog line
for alarm reporting and servicing; international versions require
an external modem) |
|
17
|
Reset switch for faulty power supply alarm |
