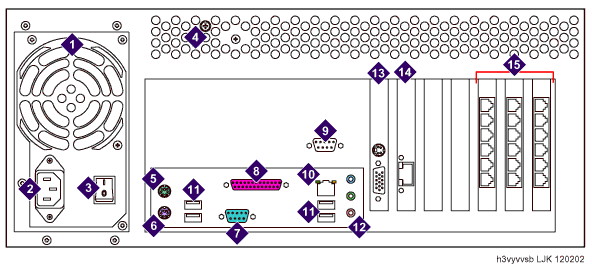

1
|
Power supply |
|
2
|
AC power receptacle |
|
3
|
Power supply on/off switch |
|
4
|
Latch for top cover |
|
5
|
Mouse connector |
|
6
|
Keyboard connector |
|
7
|
Serial port (COM1) |
|
8
|
Parallel port (not used) |
|
9
|
Serial port (COM2) |
|
10
|
Corporate LAN interface |
|
11
|
USB ports, one of which is used for the required
modem |
|
12
|
Audio connectors (not used) |
|
13
|
Video card (contains monitor connector) |
|
14
|
Network interface card (used for the private LAN
to the MSS) |
|
15
|
Port cards (type varies from machine to machine).
Up to six port boards can be installed in each MAS (depending
on the type of board and traffic requirements), typically starting
from the end of the cabinet. Port boards are not present for
IP H.323 integrations. |
