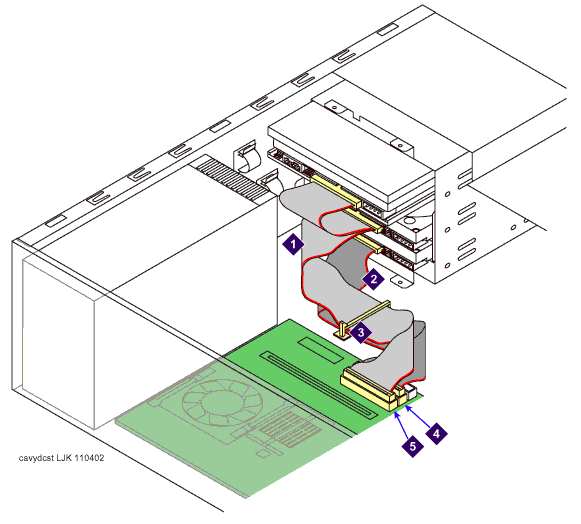

Identifying the MSS-S disk drives



1 Hard disk C - hdc (upper drive)
2 Hard disk A - hda (lower drive)
3 Disk drive cabling tie-down strap
4 Primary IDE connector
5 Secondary IDE connector
