Opening Voice Mail System Configuration

To open the Voice Mail System Configuration application, click Start > Programs > Avaya Modular Messaging > Voice Mail System Configuration.

Components of the voice mail system are represented in a hierarchical tree structure in the Voice Mail System Configuration window.

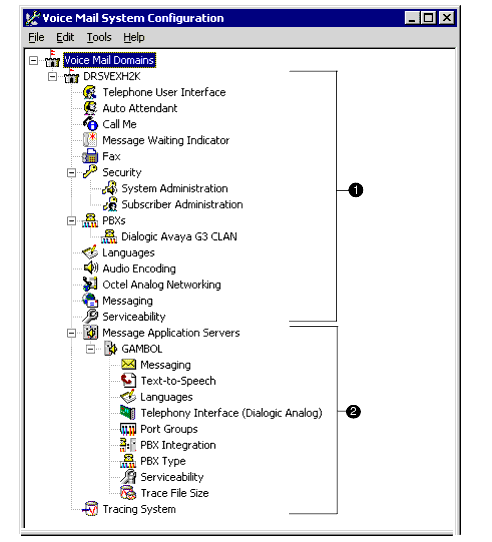

The following figure shows an example of a hierarchy in the Voice Mail System Configuration window.

1 Voice mail domain components

2 Messaging application server components

Selecting an item in the tree expands the branch to show additional items, or it may provide a direct path to a dialog box. To open the dialog box for a component that you want to configure, double-click the appropriate item.

Note: If you have not installed a tracing system, the Tracing System branch is not displayed in the Voice Mail System Configuration window.
