The interface cable connections are the same, regardless of the
type of motherboard that is installed. For clarity, both views are
shown:

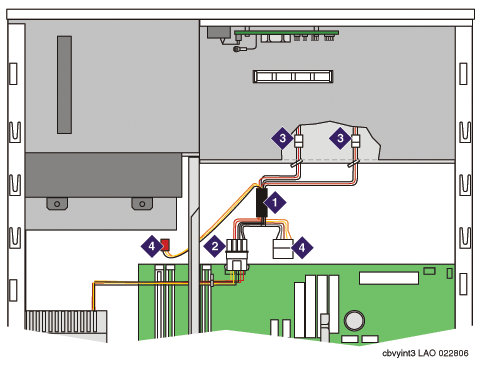

Nonintegrated video and LAN model
| 1 |
Interface cable |
| 2 |
4-pin power cable connector |
| 3 |
Two 3-pin connectors to the fans |
| 4 |
Not used in this configuration |

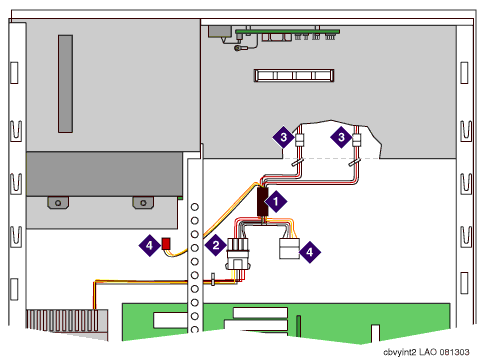

Integrated video and LAN model
| 1 |
Interface cable |
| 2 |
4-pin power cable connector |
| 3 |
Two 3-pin connectors to the fans |
| 4 |
Not used in this configuration |
